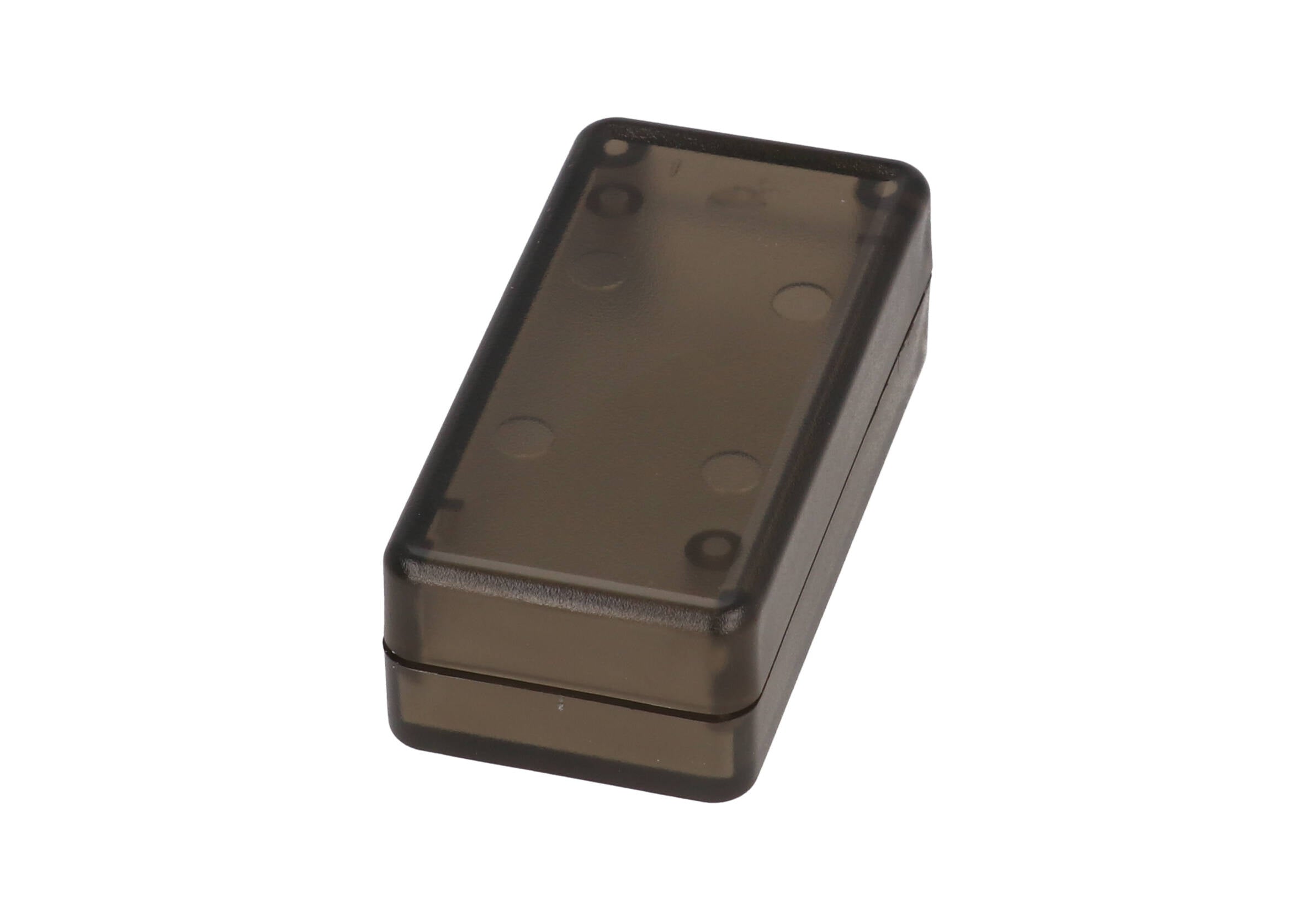

1551BTSK Hammond Subminiature Plastic Enclosure, 1.97 x 0.98 x 0.61 in, IP54, Trans. Smoke
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1551BTSK is listed by Hammond as 50 X 25 X 15.5MM ABS TRANS SMK, from the Subminiature Plastic Enclosures (1551MINI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1551BTSK specifications
| Catalog number | 1551BTSK |
| Manufacturer | Hammond Manufacturing |
| Series | Subminiature Plastic Enclosures (1551MINI Series) |
| Hammond short description | 50 X 25 X 15.5MM ABS TRANS SMK |
| Size L x W x H | 1.97 x 0.98 x 0.61 in (50 x 25 x 15 mm) |
| Shipping weight | 0.02 lb (0.01 kg) |
| Material | ABS Plastic |
| Color | Trans. Smoke |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Miniature, general purpose |
| Max. P.C. Board Length (mm) | 20.5 |
| Max. P.C. Board Width (mm) | 44 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1551BTSK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1551BTSK · Hammond 1551MINI series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
