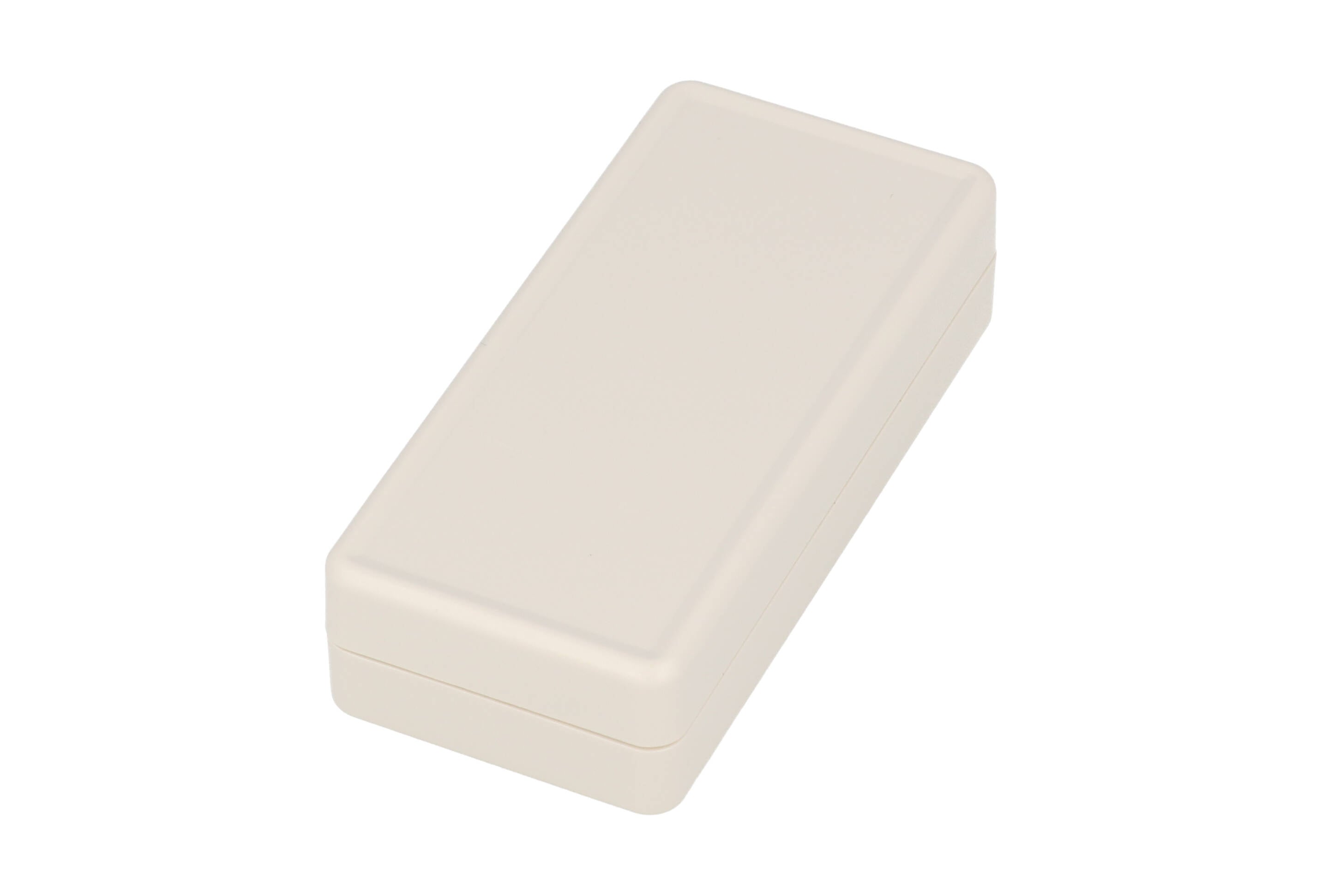

1551CGY Hammond Subminiature Plastic Enclosure, 2.56 x 1.18 x 0.61 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1551CGY is listed by Hammond as 65 X 30 X 15.5MM ABS GREY, from the Subminiature Plastic Enclosures (1551MINI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1551CGY specifications
| Catalog number | 1551CGY |
| Manufacturer | Hammond Manufacturing |
| Series | Subminiature Plastic Enclosures (1551MINI Series) |
| Hammond short description | 65 X 30 X 15.5MM ABS GREY |
| Size L x W x H | 2.56 x 1.18 x 0.61 in (65 x 30 x 15 mm) |
| Shipping weight | 0.03 lb (0.01 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Miniature, general purpose |
| Max. P.C. Board Length (mm) | 25.5 |
| Max. P.C. Board Width (mm) | 59 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1551CGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1551CGY · Hammond 1551MINI series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
