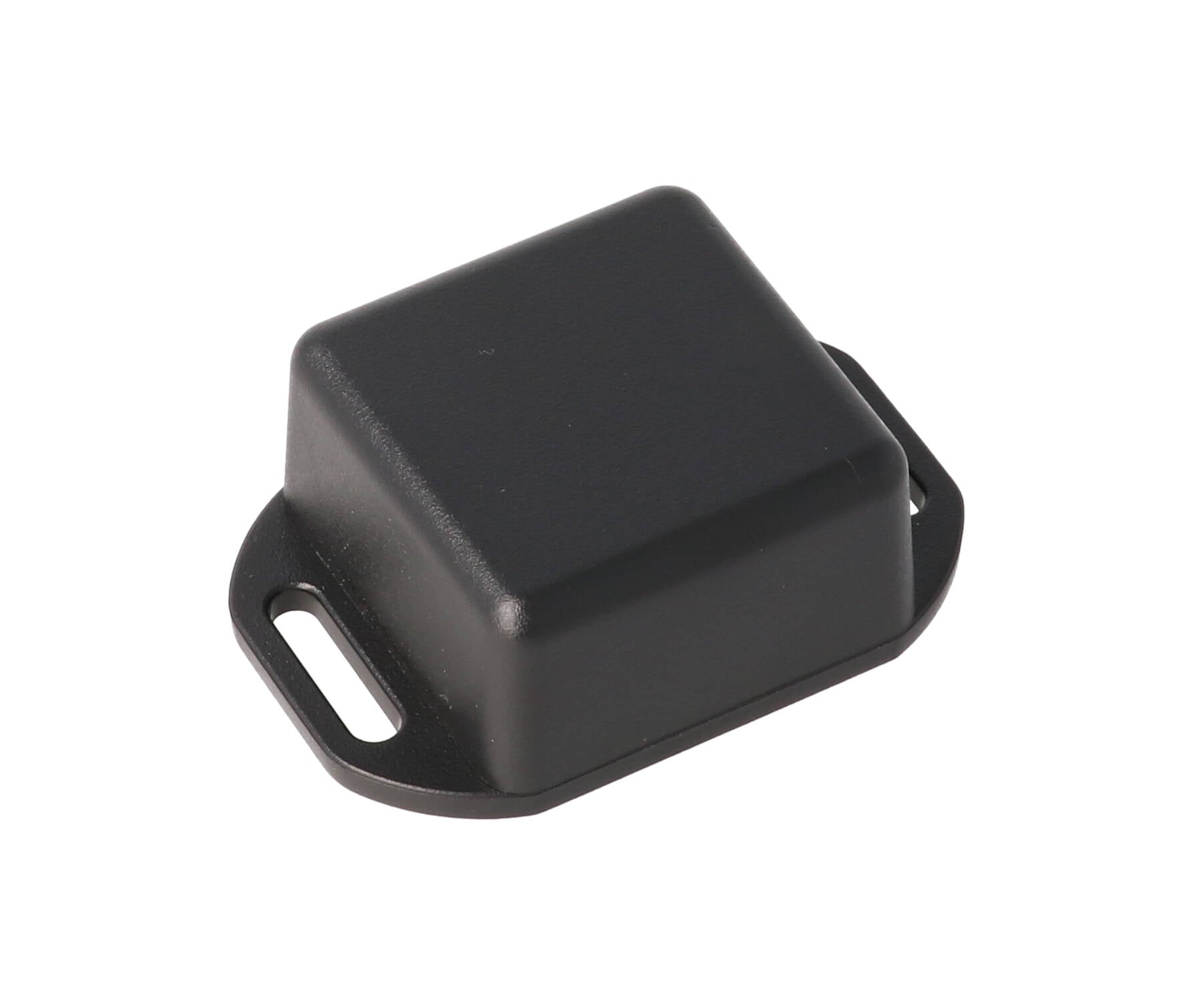

1551MFLBK Hammond ABS Plastic Miniature Hand Held Enclosure, 1.38 x 1.38 x 0.79 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1551MFLBK is listed by Hammond as black plastic enclosure with flanged lid, from the ABS Plastic Miniature Hand Held Enclosures (1551 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1551MFLBK specifications
| Catalog number | 1551MFLBK |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Miniature Hand Held Enclosures (1551 Series) |
| Hammond description | black plastic enclosure with flanged lid |
| Hammond short description | 35 X 35 X 20MM BK FLANGED LID |
| Size L x W x H | 1.38 x 1.38 x 0.79 in (35 x 35 x 20 mm) |
| Shipping weight | 0.04 lb (0.02 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Miniature, flanged |
| Max. P.C. Board Length (mm) | 29 |
| Max. P.C. Board Width (mm) | 29 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1551MFLBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1551MFLBK · Hammond 1551 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
