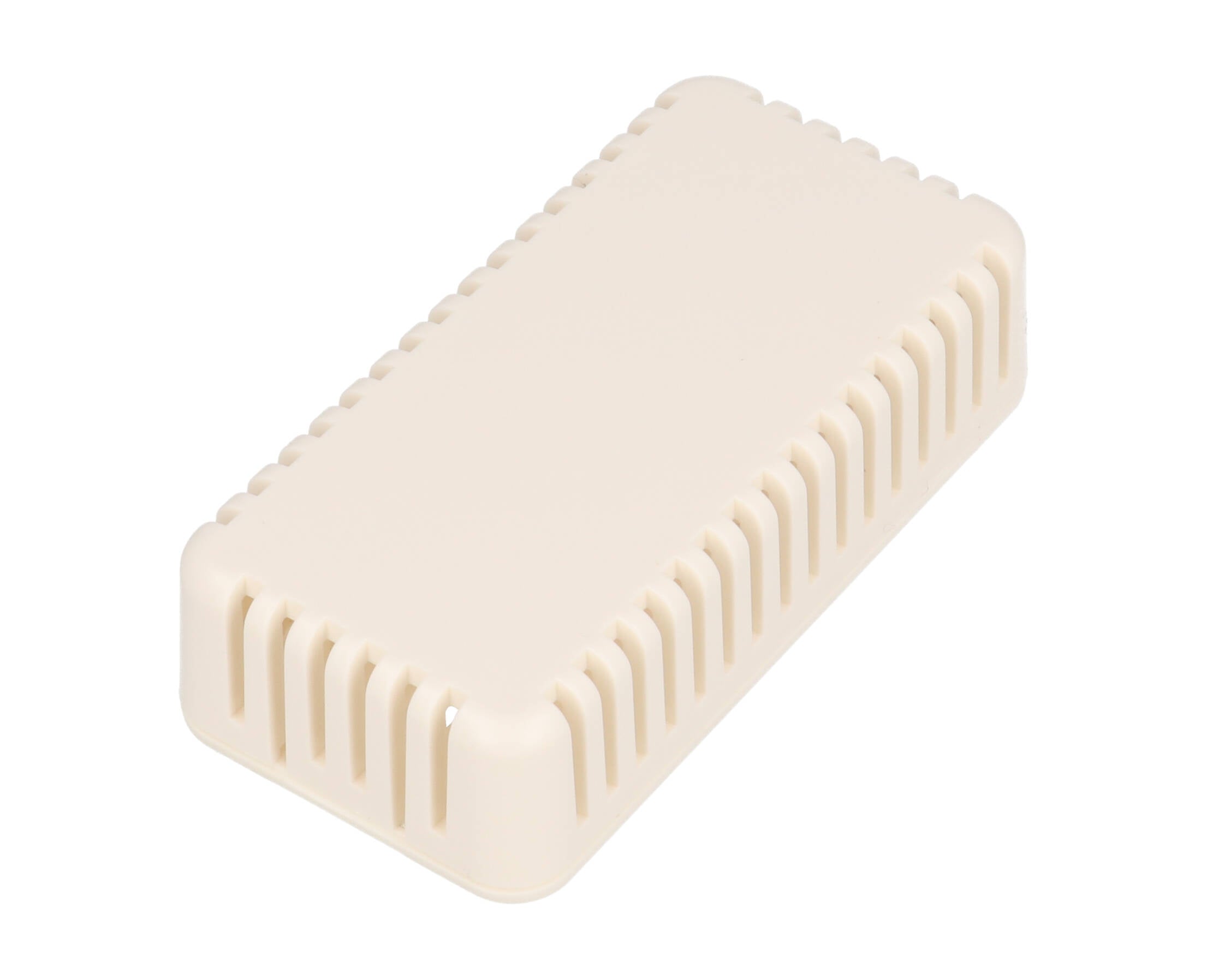

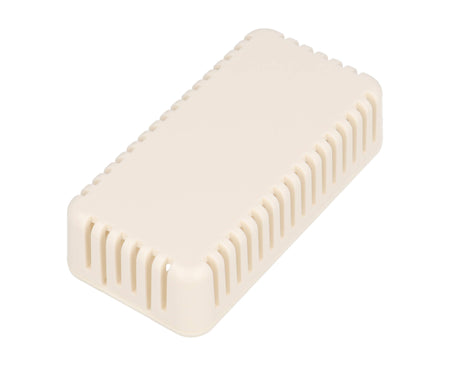

1551V2WH Hammond ABS Plastic Miniature Enclosure, 3.15 x 1.57 x 0.79 in, IP30, White
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1551V2WH is listed by Hammond as enclosure, plastic, from the ABS Plastic Miniature Enclosures (Snap-fit, wall-mount. 1551SNAP Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1551V2WH specifications
| Catalog number | 1551V2WH |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Miniature Enclosures (Snap-fit, wall-mount. 1551SNAP Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | SNAP VENTED ENCL 80 X 40 ABS |
| Size L x W x H | 3.15 x 1.57 x 0.79 in (80 x 40 x 20 mm) |
| Shipping weight | 0.05 lb (0.02 kg) |
| Material | ABS Plastic |
| Color | White |
| Flame Rating | UL94 HB |
| IP Rating | IP30 |
| Product Category | Enclosures |
| Type | Miniature, Sensor |
| Max. P.C. Board Length (mm) | 74 |
| Max. P.C. Board Width (mm) | 34 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1551V2WH. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1551V2WH · Hammond Snap-fit, wall-mount. 1551SNAP series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
