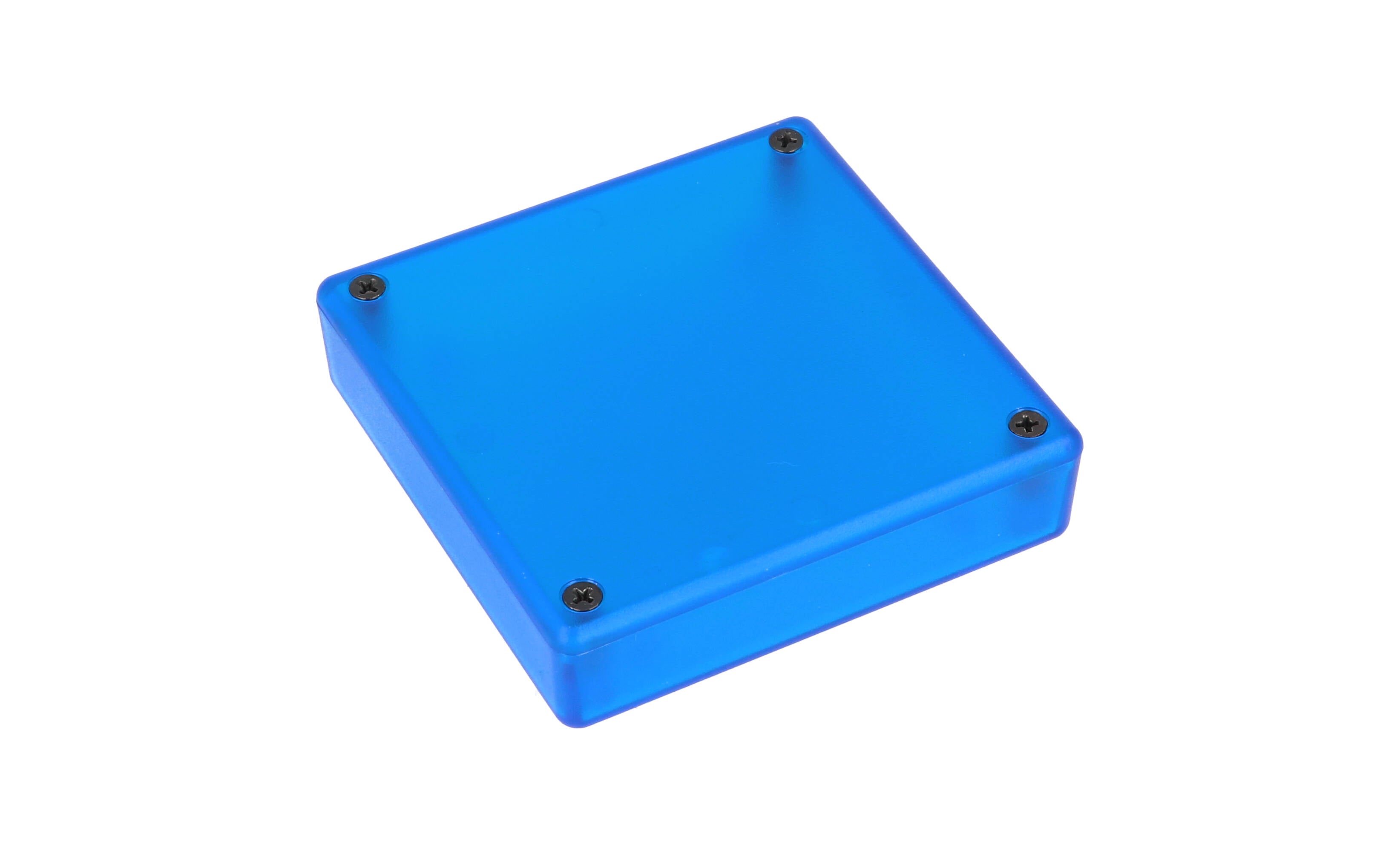

1551XTBU Hammond ABS Plastic Miniature Hand Held Enclosure, 3.15 x 3.15 x 0.79 in, IP54, Trans. Blue
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1551XTBU is listed by Hammond as translucent blue plastic enclosure, from the ABS Plastic Miniature Hand Held Enclosures (1551 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1551XTBU specifications
| Catalog number | 1551XTBU |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Miniature Hand Held Enclosures (1551 Series) |
| Hammond description | translucent blue plastic enclosure |
| Hammond short description | 80 X 80 X 20MM ABS TRANS BLUE |
| Size L x W x H | 3.15 x 3.15 x 0.79 in (80 x 80 x 20 mm) |
| Shipping weight | 0.09 lb (0.04 kg) |
| Material | ABS Plastic |
| Color | Trans. Blue |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Miniature, general purpose |
| Max. P.C. Board Length (mm) | 74 |
| Max. P.C. Board Width (mm) | 74 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1551XTBU. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1551XTBU · Hammond 1551 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
