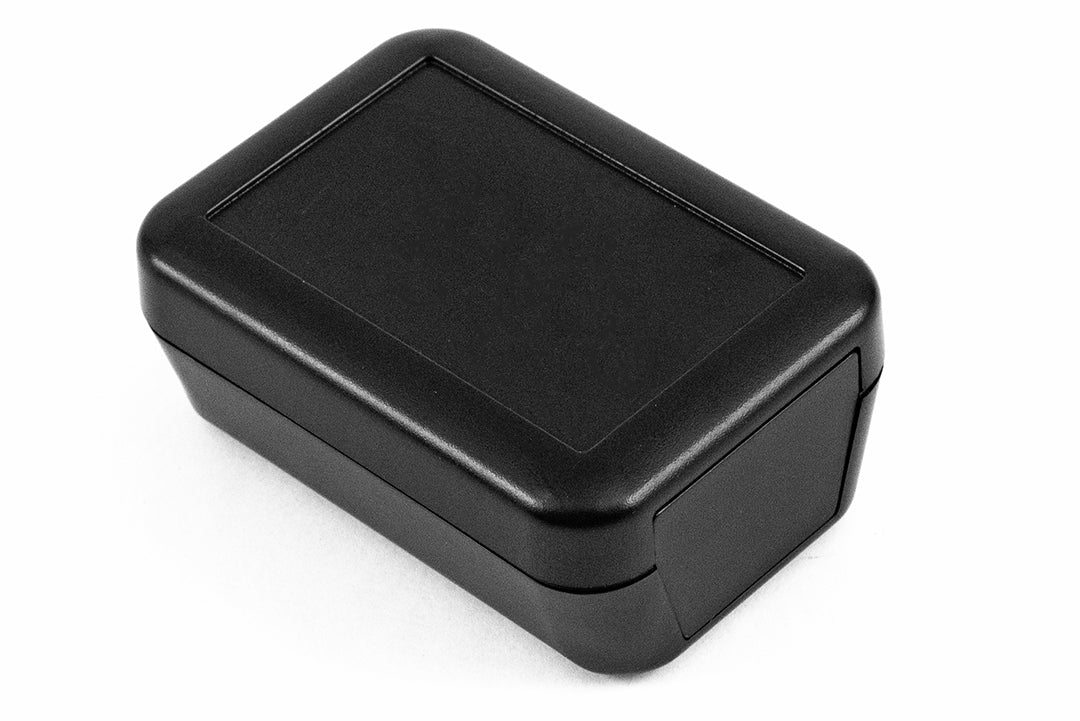

1552D1BK Hammond Hand-Held ABS Plastic Enclosure, 2.76 x 1.97 x 1.18 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1552D1BK is listed by Hammond as enclosure, plastic, from the Hand-Held ABS Plastic Enclosures (1552 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1552D1BK specifications
| Catalog number | 1552D1BK |
| Manufacturer | Hammond Manufacturing |
| Series | Hand-Held ABS Plastic Enclosures (1552 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 70X50X30MM FRABS ENCL BK |
| Size L x W x H | 2.76 x 1.97 x 1.18 in (70 x 50 x 30 mm) |
| Shipping weight | 0.08 lb (0.04 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand-held |
| Max. P.C. Board Length (mm) | 49 |
| Max. P.C. Board Width (mm) | 43.7 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1552D1BK. Confirm against the current Hammond drawing before you design it in.
