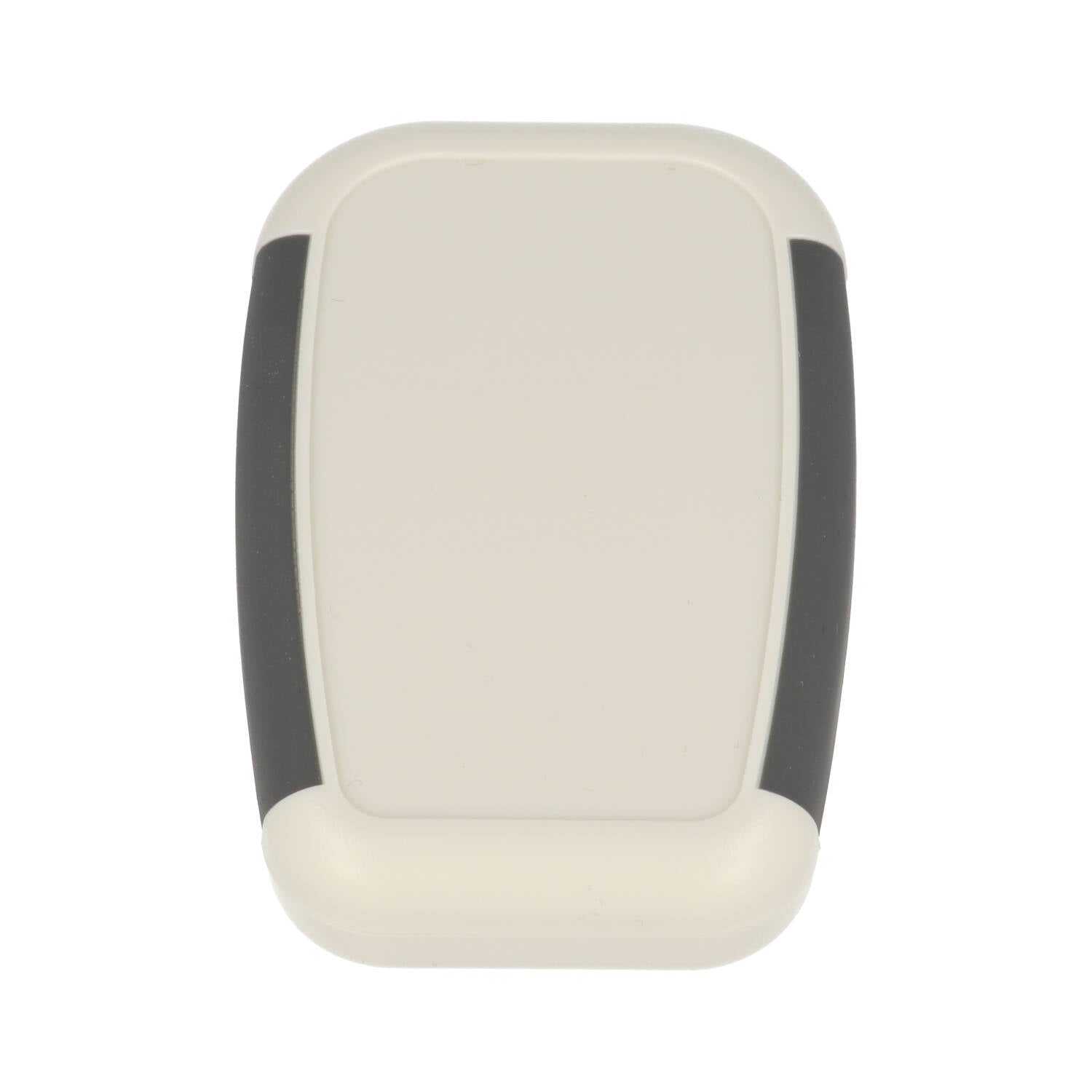

1553AAGY Hammond ABS Plastic Hand Held Enclosure, 2.95 x 1.97 x 0.67 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1553AAGY is listed by Hammond as grey ABS w/ grey soft side hand held enclosure 2.90x2.00x0.70, from the ABS Plastic Hand Held Enclosures (1553 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1553AAGY specifications
| Catalog number | 1553AAGY |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Hand Held Enclosures (1553 Series) |
| Hammond description | grey ABS w/ grey soft side hand held enclosure 2.90x2.00x0.70 |
| Hammond short description | 1553 MINI SOFT TOUCH CASE |
| Size L x W x H | 2.95 x 1.97 x 0.67 in (75 x 50 x 17 mm) |
| Shipping weight | 0.04 lb (0.02 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand-held, soft sided |
| Max. P.C. Board Length (mm) | 69.2 |
| Max. P.C. Board Width (mm) | 38.9 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1553AAGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1553AAGY · Hammond 1553 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
