1553CBKBAT Hammond ABS Plastic Hand Held Enclosure, 4.62 x 3.11 x 1.3 in, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

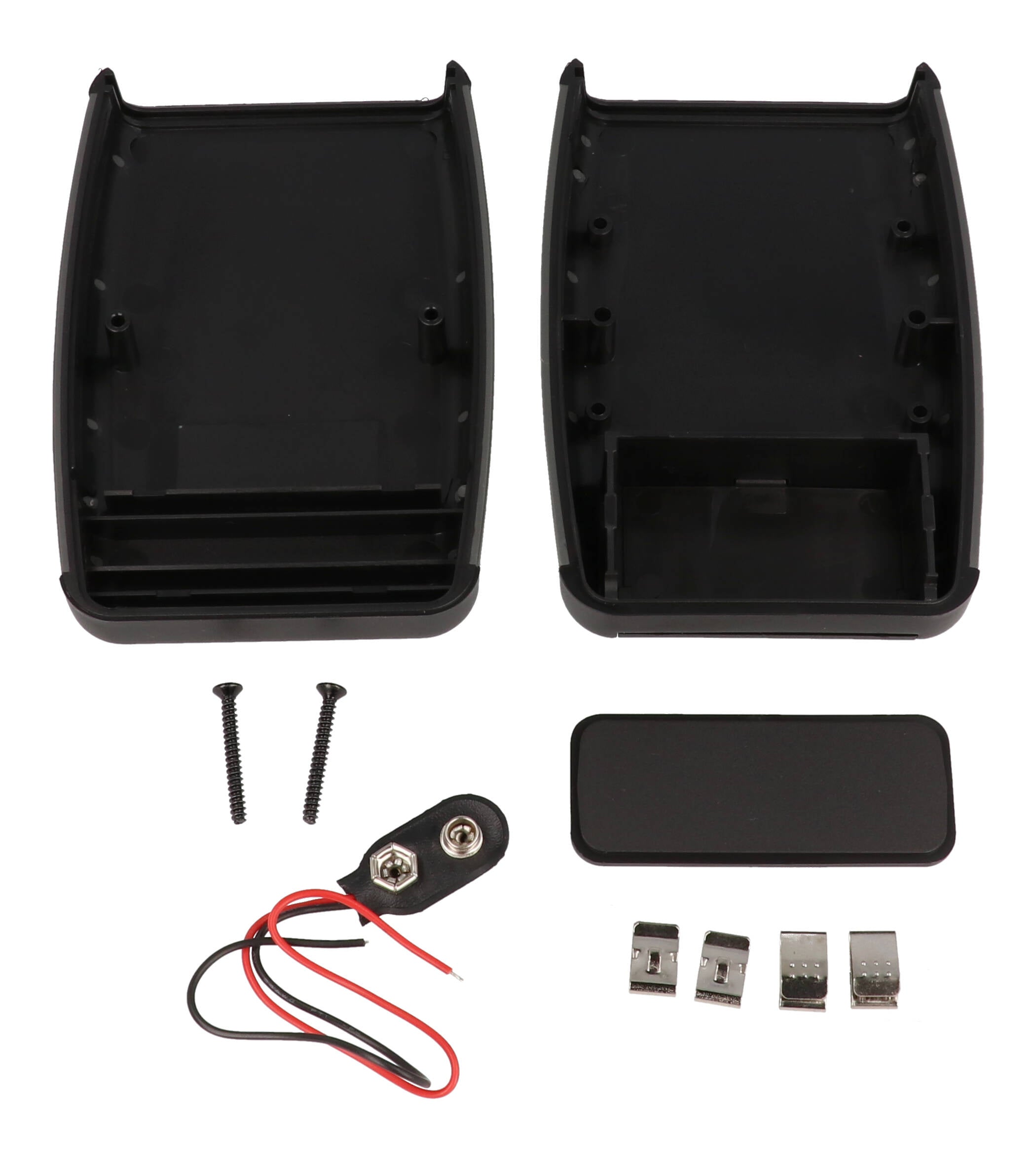

The Hammond Manufacturing 1553CBKBAT is listed by Hammond as black ABS w/ grey soft side hand held enclosure & battery door 4.62x3.11x1.30, from the ABS Plastic Hand Held Enclosures (1553 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1553CBKBAT specifications
| Catalog number | 1553CBKBAT |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Hand Held Enclosures (1553 Series) |
| Hammond description | black ABS w/ grey soft side hand held enclosure & battery door 4.62x3.11x1.30 |
| Hammond short description | 1553 SOFT TOUCH W BAT. DOOR |
| Size L x W x H | 4.62 x 3.11 x 1.3 in (117 x 79 x 33 mm) |
| Shipping weight | 0.18 lb (0.08 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| Product Category | Enclosures |
| Type | Hand-held, soft sided, battery |
| Max. P.C. Board Length (mm) | 68.73 |
| Max. P.C. Board Width (mm) | 78.18 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1553CBKBAT. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1553CBKBAT · Hammond 1553 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
