1553TTBKBAT Hammond Hand-Held "T" Soft Side Enclosure, 6.5 x 3.15 x 1.1 in, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

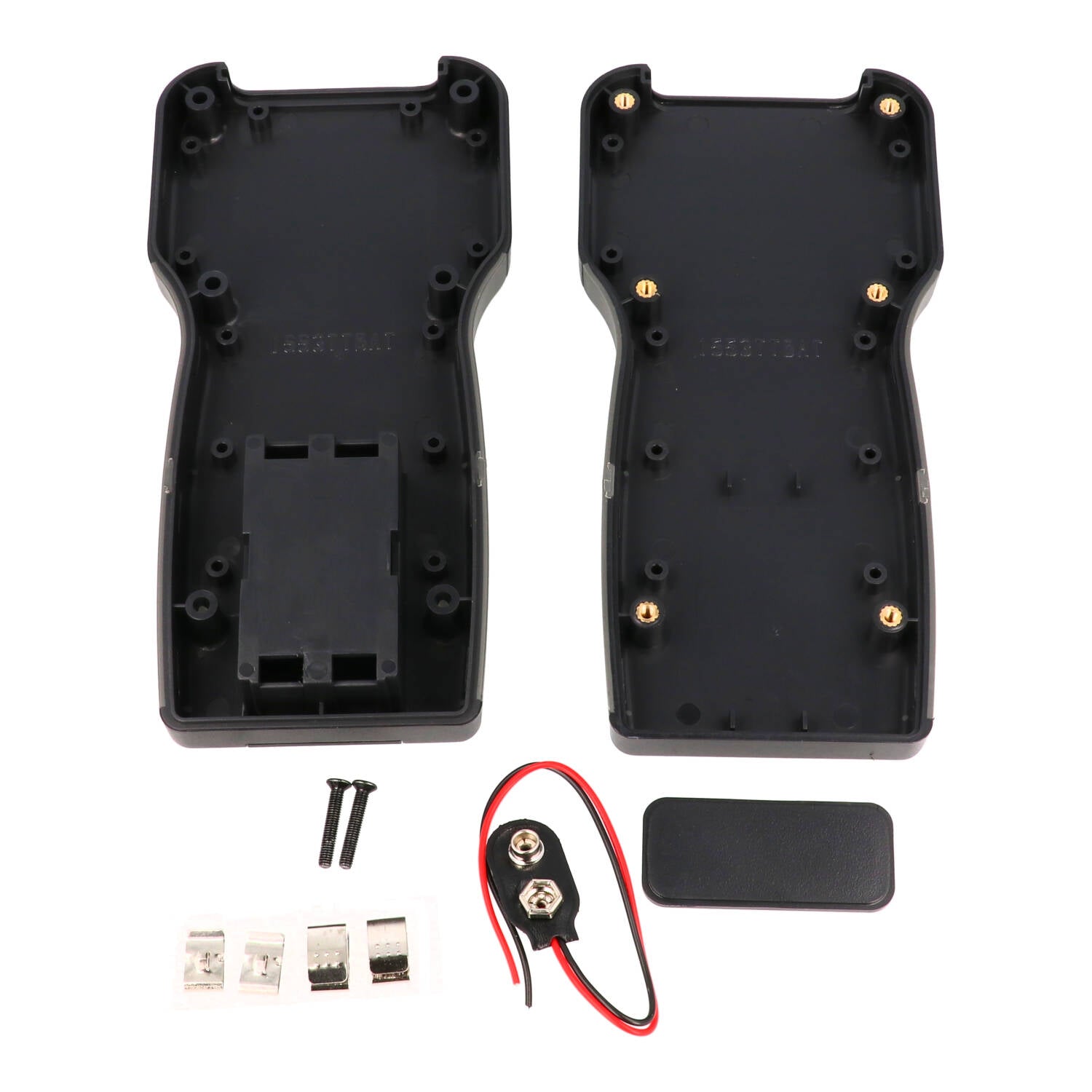

The Hammond Manufacturing 1553TTBKBAT is listed by Hammond as black ABS w/ battery door and grey TPE side hand held enclosure 6.50x3.13x1.10, from the Hand-Held "T" Soft Side Enclosures (1553T Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1553TTBKBAT specifications
| Catalog number | 1553TTBKBAT |
| Manufacturer | Hammond Manufacturing |
| Series | Hand-Held "T" Soft Side Enclosures (1553T Series) |
| Hammond description | black ABS w/ battery door and grey TPE side hand held enclosure 6.50x3.13x1.10 |
| Hammond short description | 1553 SOFT TOUCH CASE BAT |
| Size L x W x H | 6.5 x 3.15 x 1.1 in (165 x 80 x 28 mm) |
| Shipping weight | 0.26 lb (0.12 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| Product Category | Enclosures |
| Type | Hand-held, soft sided, battery |
| Max. P.C. Board Length (mm) | 92.22 |
| Max. P.C. Board Width (mm) | 134 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1553TTBKBAT. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1553TTBKBAT · Hammond 1553T series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF) · 1553TT Maximum PC Board Dimensions.pdf (PDF).
