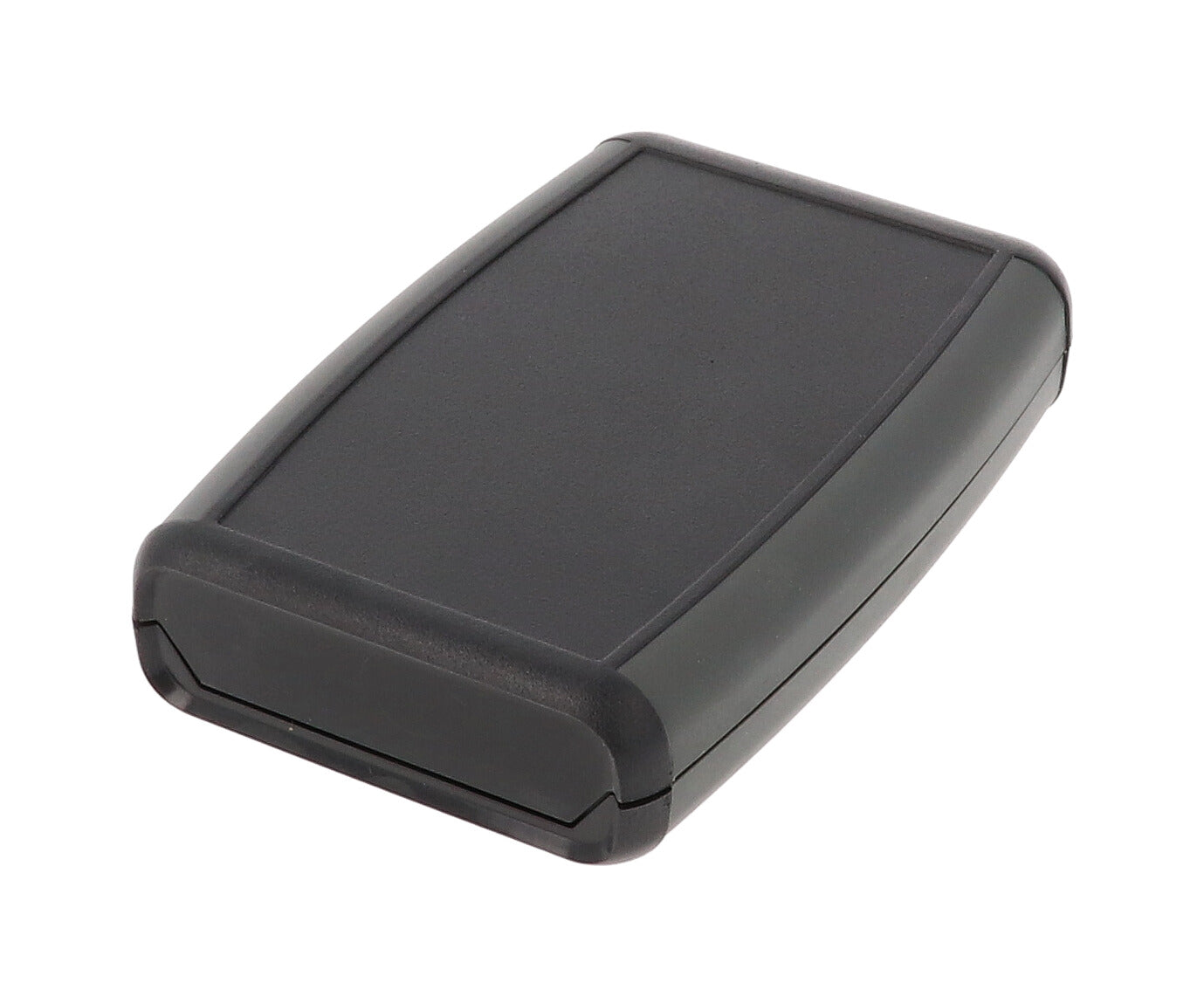

1553WBBK Hammond Water-Tight Hand-Held Enclosure, 4.62 x 3.11 x 0.98 in, IP65, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1553WBBK is listed by Hammond as black ABS w/ grey TPE side hand held watertight enclosure 4.62x3.11x0.95, from the Water-Tight Hand-Held Enclosures (1553W Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1553WBBK specifications
| Catalog number | 1553WBBK |
| Manufacturer | Hammond Manufacturing |
| Series | Water-Tight Hand-Held Enclosures (1553W Series) |
| Hammond description | black ABS w/ grey TPE side hand held watertight enclosure 4.62x3.11x0.95 |
| Hammond short description | SOFT TOUCH WATERTIGHT CASE BK |
| Size L x W x H | 4.62 x 3.11 x 0.98 in (117 x 79 x 25 mm) |
| Shipping weight | 0.21 lb (0.10 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Hand-held, water-tight |
| Max. P.C. Board Length (mm) | 68.49 |
| Max. P.C. Board Width (mm) | 107.23 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1553WBBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1553WBBK · Hammond 1553W series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
