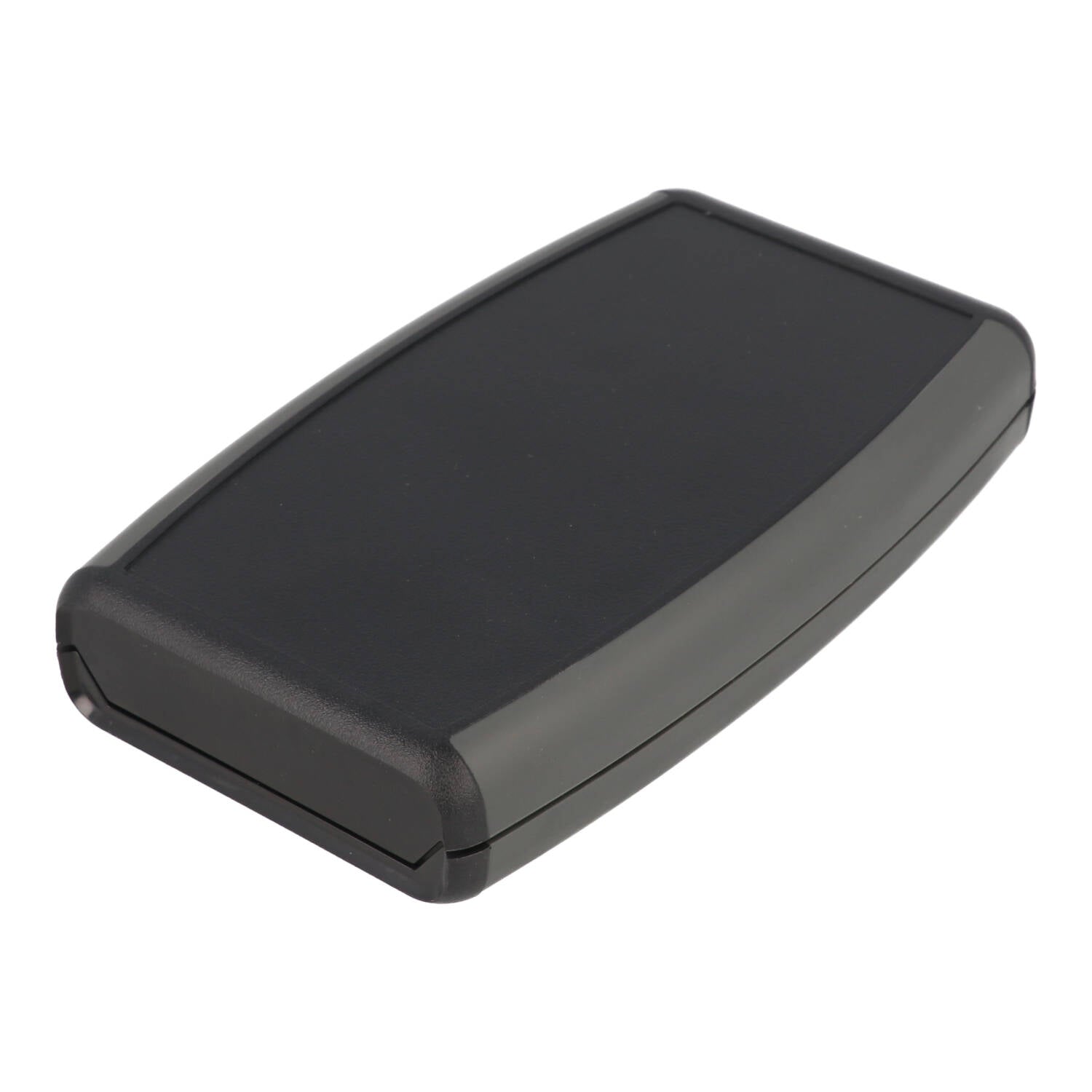

1553WDBK Hammond Water-Tight Hand-Held Enclosure, 5.8 x 3.54 x 0.98 in, IP65, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1553WDBK is listed by Hammond as black ABS w/ grey TPE side hand held watertight enclosure 5.80x3.50x0.98, from the Water-Tight Hand-Held Enclosures (1553W Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1553WDBK specifications
| Catalog number | 1553WDBK |
| Manufacturer | Hammond Manufacturing |
| Series | Water-Tight Hand-Held Enclosures (1553W Series) |
| Hammond description | black ABS w/ grey TPE side hand held watertight enclosure 5.80x3.50x0.98 |
| Hammond short description | SOFT TOUCH WATERTIGHT CASE BK |
| Size L x W x H | 5.8 x 3.54 x 0.98 in (147 x 90 x 25 mm) |
| Shipping weight | 0.26 lb (0.12 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Hand-held, water-tight |
| Max. P.C. Board Length (mm) | 67 |
| Max. P.C. Board Width (mm) | 137 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1553WDBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1553WDBK · Hammond 1553W series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
