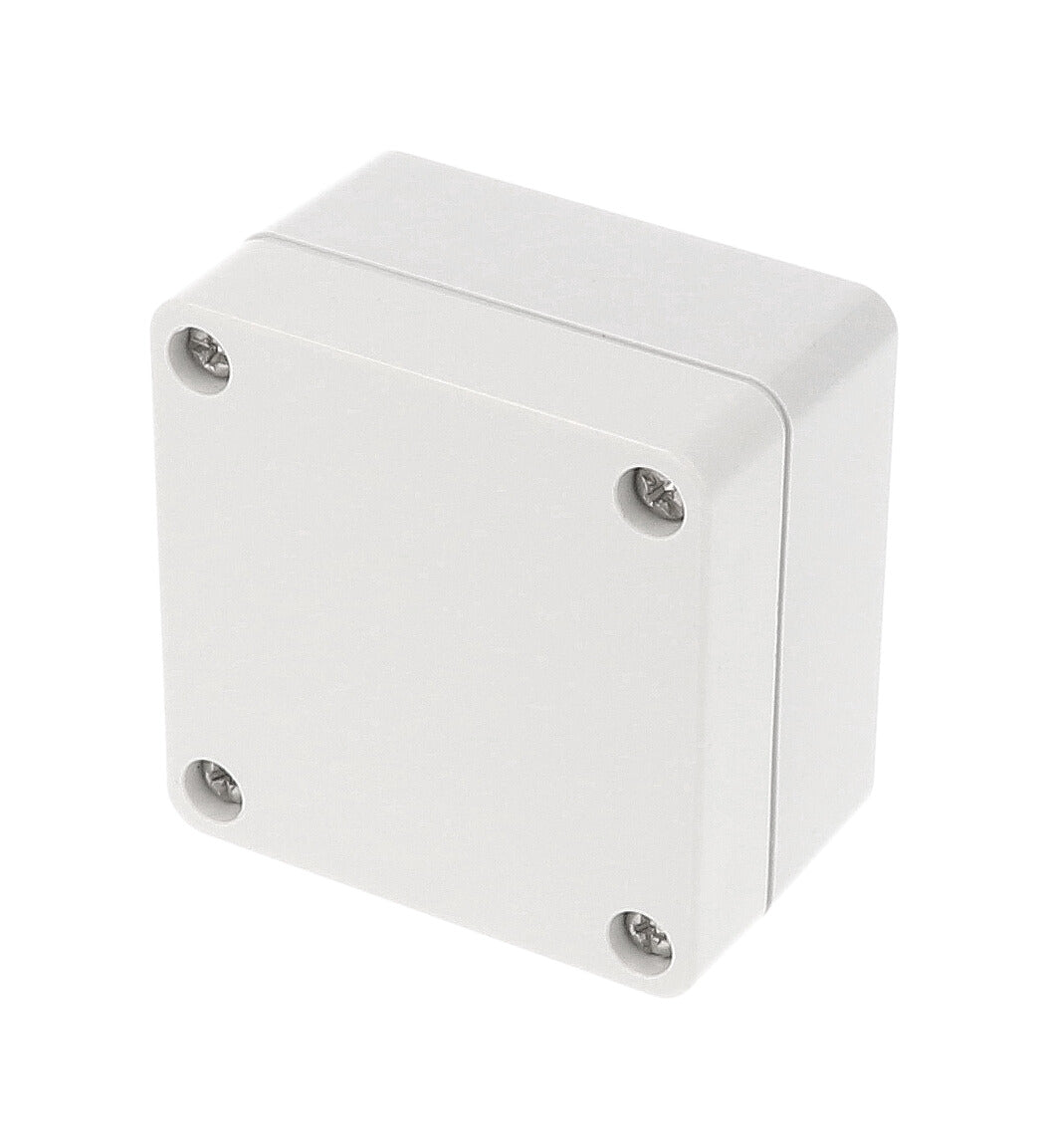

1554B2GY Hammond Type 4X, 6P Polycarbonate & General Purpose ABS Enclosure, 2.6 x 2.6 x 1.6 in, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1554B2GY is listed by Hammond as RAL7035 grey polycarb plastic watertight enclosure, from the Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1554B2GY specifications
| Catalog number | 1554B2GY |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series) |
| Hammond description | RAL7035 grey polycarb plastic watertight enclosure |
| Hammond short description | 65X65X40MM POLYCARB NEMA ENCL |
| Size L x W x H | 2.6 x 2.6 x 1.6 in (66 x 66 x 41 mm) |
| Shipping weight | 0.19 lb (0.09 kg) |
| UL File # | E65324 |
| Material | Polycarbonate |
| Color | Light Gray |
| Flame Rating | UL94 5VA |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 55.45 |
| Max. P.C. Board Width (mm) | 55.96 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1554B2GY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1554B2GY · Hammond 1554 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
