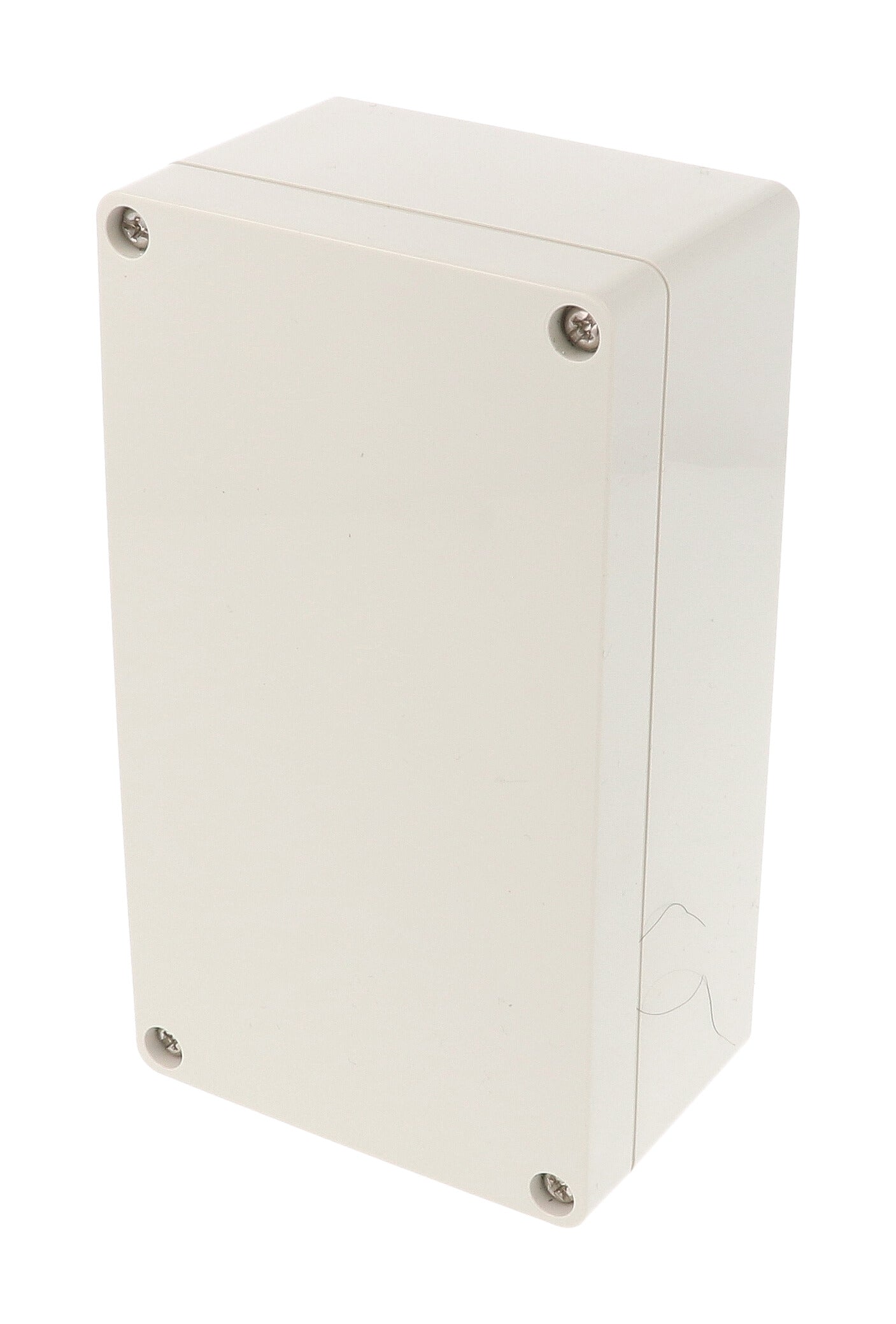

1554JGY Hammond Type 4X, 6P Polycarbonate & General Purpose ABS Enclosure, 6.3 x 3.5 x 2.4 in, IP66, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1554JGY is listed by Hammond as RAL7035 grey ABS plastic watertight enclosure, from the Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1554JGY specifications
| Catalog number | 1554JGY |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series) |
| Hammond description | RAL7035 grey ABS plastic watertight enclosure |
| Hammond short description | 160X90X60MM ABS NEMA ENCL. |
| Size L x W x H | 6.3 x 3.5 x 2.4 in (160 x 89 x 61 mm) |
| Shipping weight | 0.51 lb (0.23 kg) |
| UL File # | E65324 |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 77.47 |
| Max. P.C. Board Width (mm) | 147.32 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1554JGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1554JGY · Hammond 1554 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
