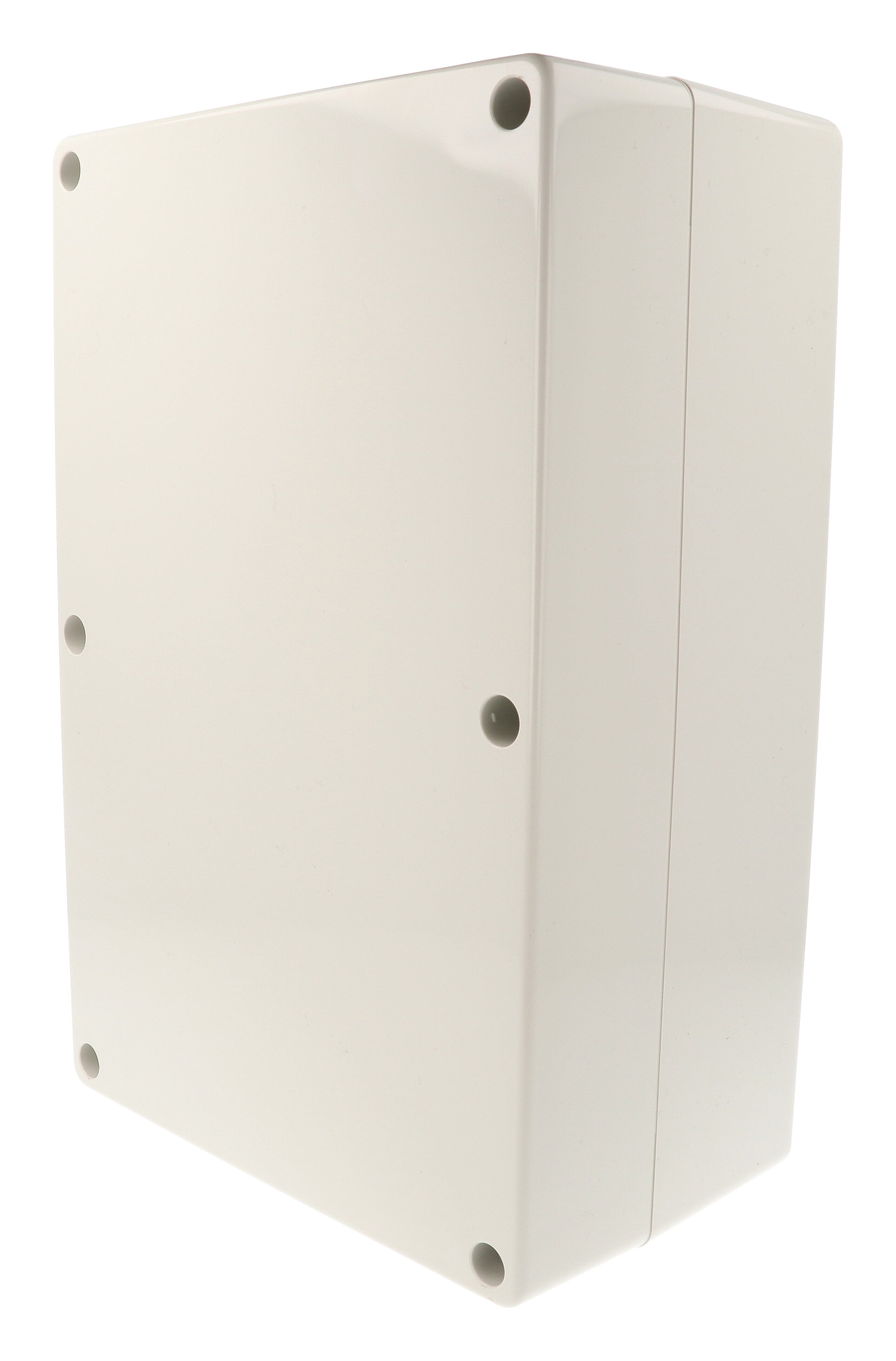

1554XAGY Hammond Type 4X, 6P Polycarbonate & General Purpose ABS Enclosure, 11.81 x 7.87 x 4.72 in, IP66, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1554XAGY is listed by Hammond as 300X200X120MM ABS NEMA ENCL, from the Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1554XAGY specifications
| Catalog number | 1554XAGY |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series) |
| Hammond short description | 300X200X120MM ABS NEMA ENCL |
| Size L x W x H | 11.81 x 7.87 x 4.72 in (300 x 200 x 120 mm) |
| Shipping weight | 2.48 lb (1.12 kg) |
| UL File # | E65324 |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 285 |
| Max. P.C. Board Width (mm) | 174 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1554XAGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1554XAGY · Hammond 1554 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
