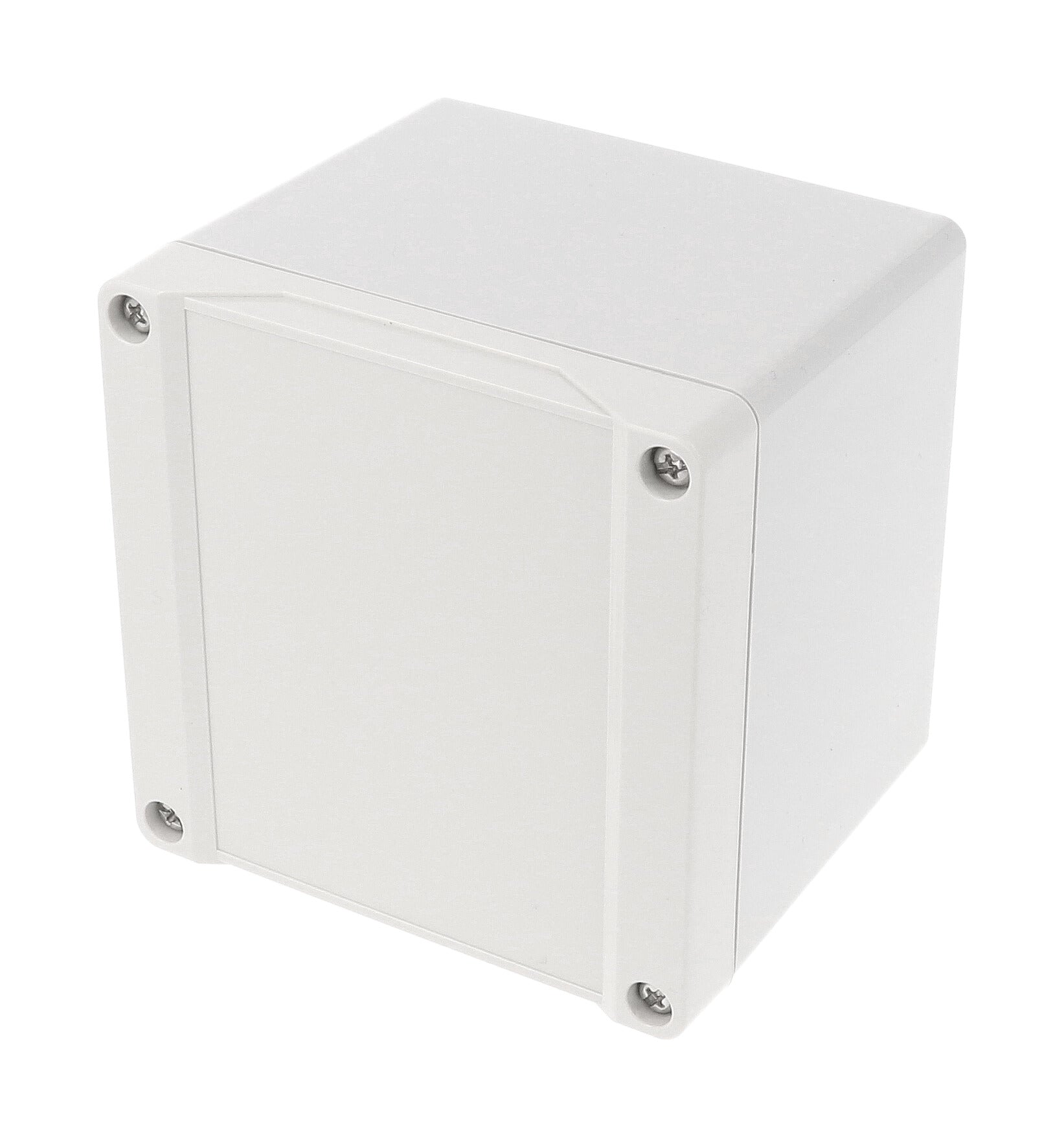

1555LAGY Hammond Type 4X, 6P Polycarbonate & General Purpose ABS Enclosure, 4.13 x 4.13 x 3.54 in, IP66, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1555LAGY is listed by Hammond as RAL7035 grey watertight plastic enclosure, from the Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1555 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1555LAGY specifications
| Catalog number | 1555LAGY |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1555 Series) |
| Hammond description | RAL7035 grey watertight plastic enclosure |
| Hammond short description | 105X105X90MM ABS NEMA ENCL. |
| Size L x W x H | 4.13 x 4.13 x 3.54 in (105 x 105 x 90 mm) |
| Shipping weight | 0.55 lb (0.25 kg) |
| UL File # | E65324 |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 92.5 |
| Max. P.C. Board Width (mm) | 101 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1555LAGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1555LAGY · Hammond 1555 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
