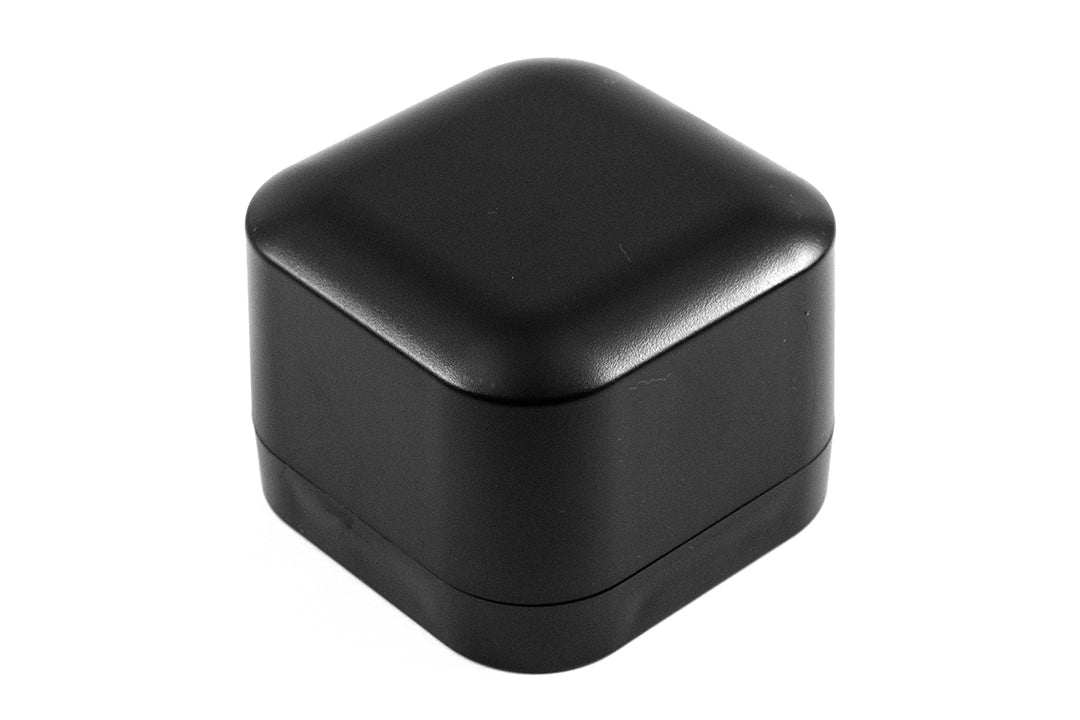

1557BABK Hammond Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosure, 3.15 x 3.15 x 2.36 in, IP66, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1557BABK is listed by Hammond as BLACK GPABS plastic watertight enclosure, from the Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures (1557 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1557BABK specifications
| Catalog number | 1557BABK |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures (1557 Series) |
| Hammond description | BLACK GPABS plastic watertight enclosure |
| Hammond short description | ABS NEMA WALL MNT ENCL BK |
| Size L x W x H | 3.15 x 3.15 x 2.36 in (80 x 80 x 60 mm) |
| Shipping weight | 0.3 lb (0.14 kg) |
| UL File # | E65324 |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 70.64 |
| Max. P.C. Board Width (mm) | 70.64 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1557BABK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1557BABK · Hammond 1557 series specification sheet (PDF) · Wall Mount Foot Installation (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
