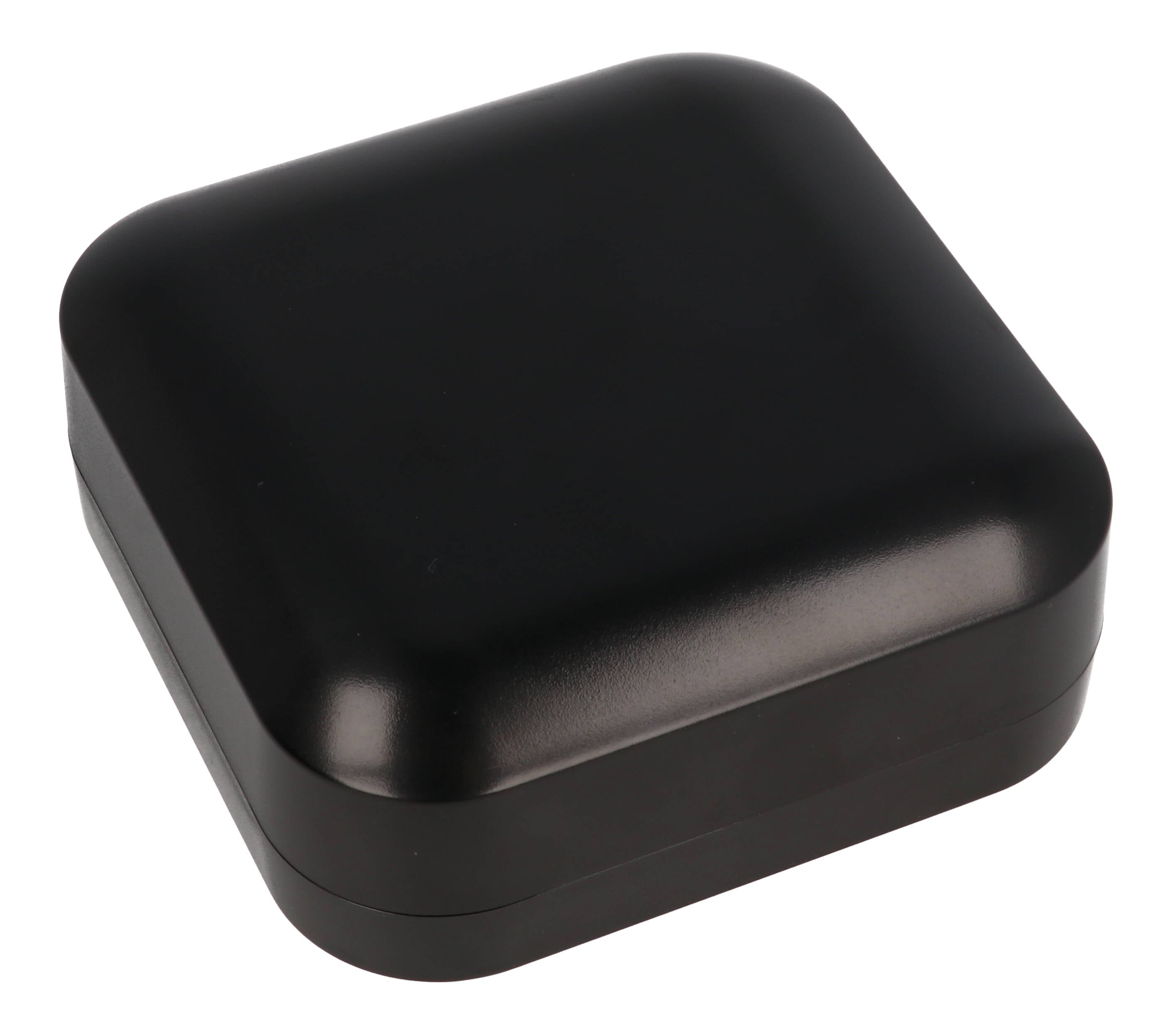

1557D2BK Hammond Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosure, 4.72 x 4.72 x 1.77 in, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1557D2BK is listed by Hammond as BLACK PC plastic watertight enclosure, from the Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures (1557 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1557D2BK specifications
| Catalog number | 1557D2BK |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures (1557 Series) |
| Hammond description | BLACK PC plastic watertight enclosure |
| Hammond short description | PC NEMA WALL MNT ENCL BK |
| Size L x W x H | 4.72 x 4.72 x 1.77 in (120 x 120 x 45 mm) |
| Shipping weight | 0.48 lb (0.22 kg) |
| UL File # | E65324 |
| Material | Polycarbonate |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 108.5 |
| Max. P.C. Board Width (mm) | 108.5 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1557D2BK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1557D2BK · Hammond 1557 series specification sheet (PDF) · Wall Mount Foot Installation (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
