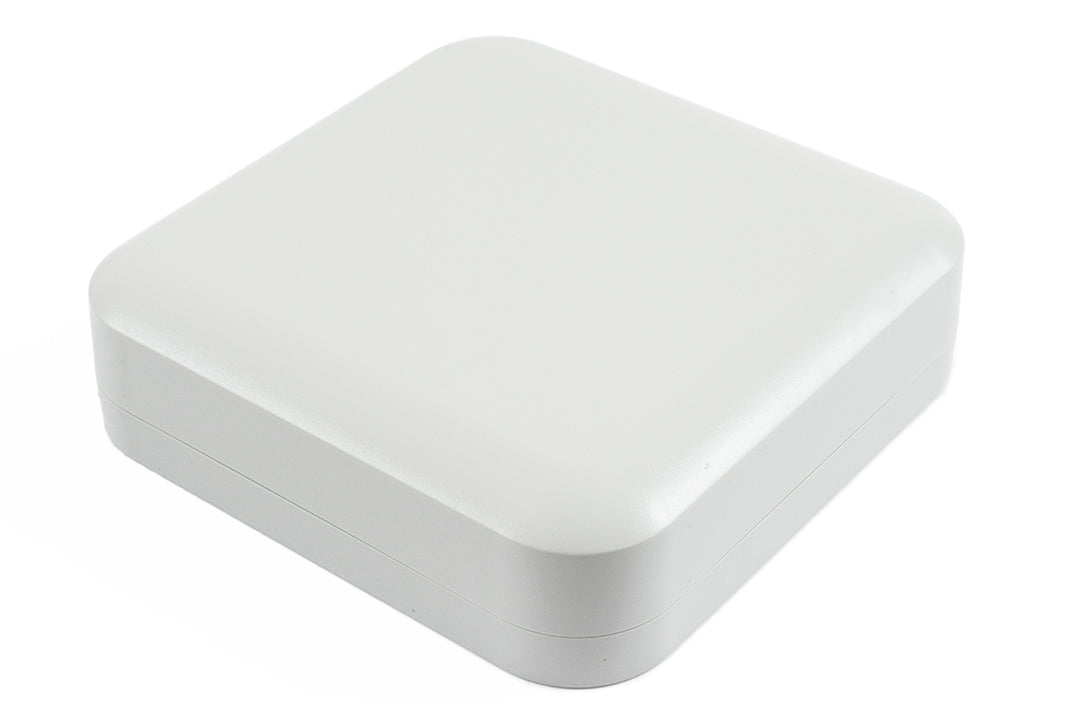

1557F2GY Hammond Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosure, 6.3 x 6.3 x 1.77 in, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1557F2GY is listed by Hammond as RAL7035 grey PC plastic watertight enclosure, from the Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures (1557 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1557F2GY specifications
| Catalog number | 1557F2GY |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures (1557 Series) |
| Hammond description | RAL7035 grey PC plastic watertight enclosure |
| Hammond short description | PC NEMA WALL MNT ENCL GY |
| Size L x W x H | 6.3 x 6.3 x 1.77 in (160 x 160 x 45 mm) |
| Shipping weight | 0.71 lb (0.32 kg) |
| UL File # | E65324 |
| Material | Polycarbonate |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 147.5 |
| Max. P.C. Board Width (mm) | 147.5 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1557F2GY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1557F2GY · Hammond 1557 series specification sheet (PDF) · Wall Mount Foot Installation (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
