157D Hammond DC Reactor
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

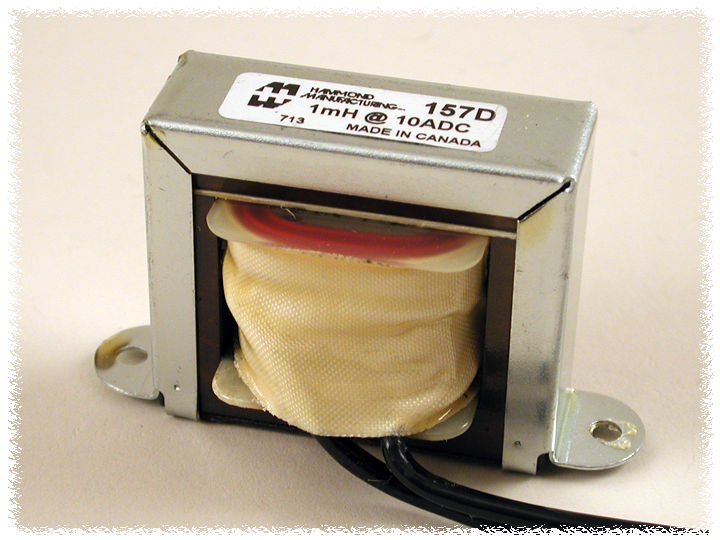

The Hammond Manufacturing 157D is listed by Hammond as DC reactor, filter choke, open channel mount, inductance 1mH, DC current 10A, from the D.C. Reactors or filter chokes (153-159 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
157D specifications
| Catalog number | 157D |
| Manufacturer | Hammond Manufacturing |
| Series | D.C. Reactors or filter chokes (153-159 Series) |
| Hammond description | DC reactor, filter choke, open channel mount, inductance 1mH, DC current 10A |
| Hammond short description | CHOKE |
| Shipping weight | 1 lb (0.45 kg) |
| Inductance +/- 15% | 1mH |
| D.C. Current | 10A |
| Resistance +/- 15% (Ohms) | 0.038 |
| Maximum Operating Volts (D.C) | 400 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 157D. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 157D · Hammond 153-159 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
