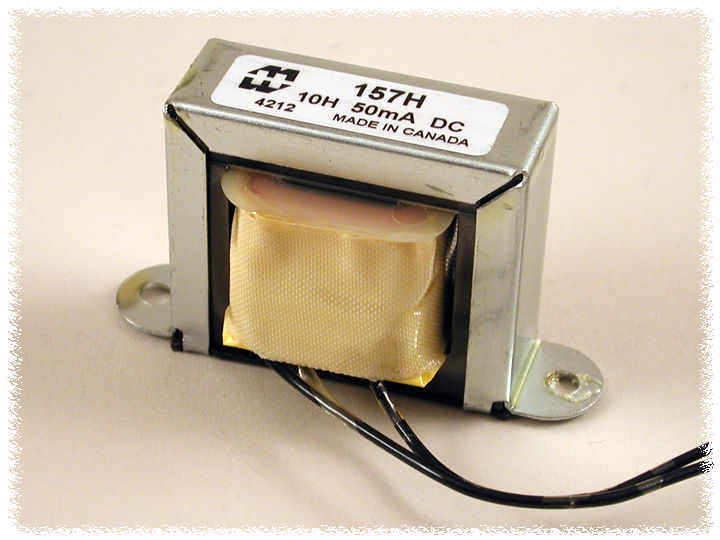

The Hammond Manufacturing 157H is listed by Hammond as DC reactor, filter choke, open channel mount, inductance 10H, DC current 50 ma., from the D.C. Reactors or filter chokes (153-159 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
157H specifications
| Catalog number | 157H |
| Manufacturer | Hammond Manufacturing |
| Series | D.C. Reactors or filter chokes (153-159 Series) |
| Hammond description | DC reactor, filter choke, open channel mount, inductance 10H, DC current 50 ma. |
| Hammond short description | CHOKE |
| Shipping weight | 1 lb (0.45 kg) |
| Inductance +/- 15% | 10H |
| D.C. Current | 50 ma. |
| Resistance +/- 15% (Ohms) | 408 |
| Maximum Operating Volts (D.C) | 500 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 157H. Confirm against the current Hammond drawing before you design it in.
