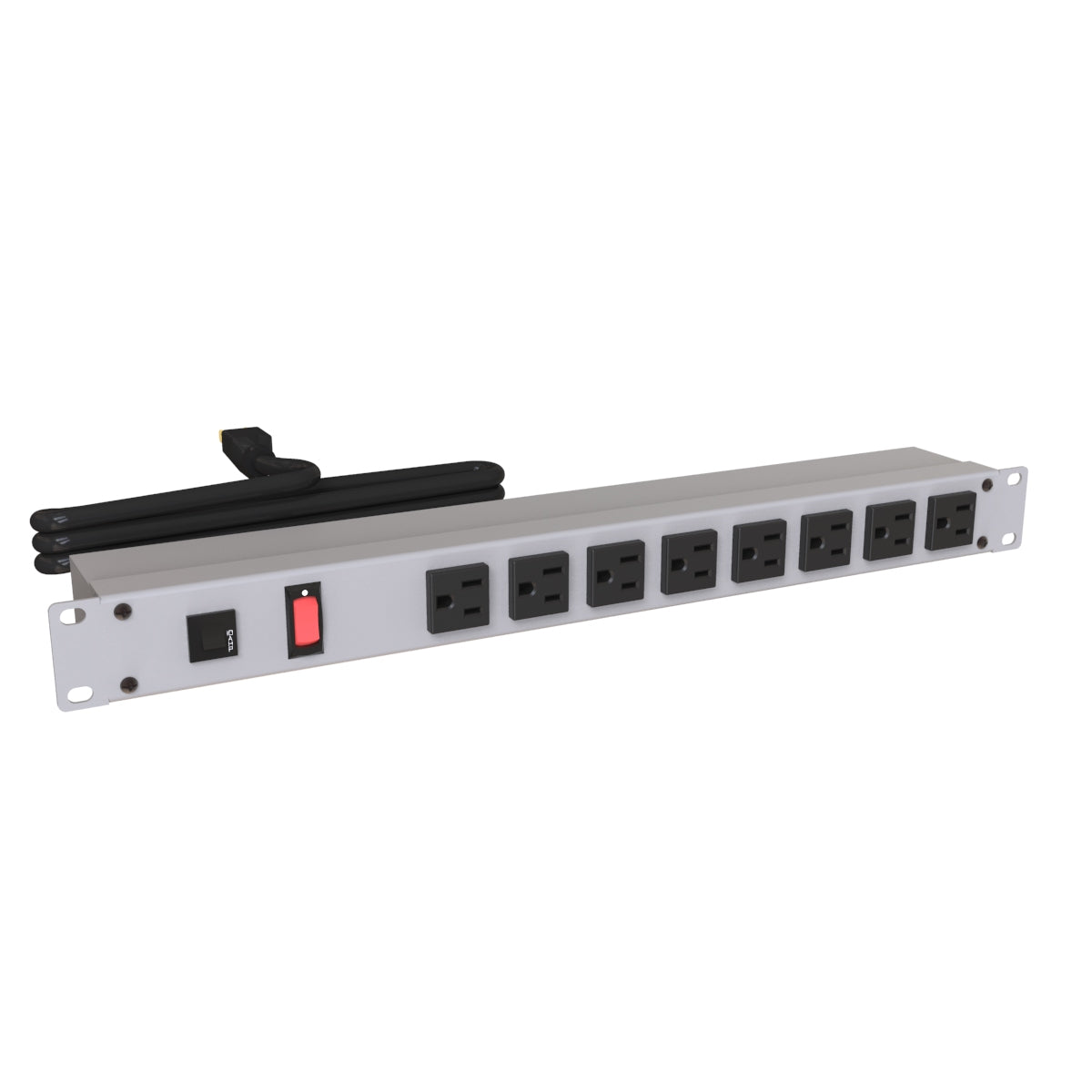

1582H8A1 Hammond Rack Mount Basic PDU, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1582H8A1 is listed by Hammond as 19" RACK MOUNT, 8 REC ON FRONT, from the Rack Mount Basic PDU (1582 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1582H8A1 specifications
| Catalog number | 1582H8A1 |
| Manufacturer | Hammond Manufacturing |
| Series | Rack Mount Basic PDU (1582 Series) |
| Hammond short description | 19" RACK MOUNT, 8 REC ON FRONT |
| Shipping weight | 3.5 lb (1.59 kg) |
| UL File # | E166039 |
| Outlet Strip Type | 1U 19in Rack Mount |
| Rated Voltage | 120 VAC |
| Rated Current (Amps) | 15 |
| Switch Type | On/Off Rocker Switch |
| Total Outlets | 8 |
| Outlet Type | 5-15R |
| Plug Type | 5-15P |
| Cord Included | Yes |
| Cord Length (feet) | 6 |
| Shielded Cord | No |
| Surge Protection | No |
| Color | Gray |
| Rotated Outlets | No |
| Hospital Grade | No |
| Metered | No |
| Outlets (Front) | 8 |
| Outlets (Rear) | 0 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1582H8A1. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1582H8A1 · Hammond 1582 series specification sheet (PDF).
