1583T8A1 Hammond Rack Mount Basic PDU, Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

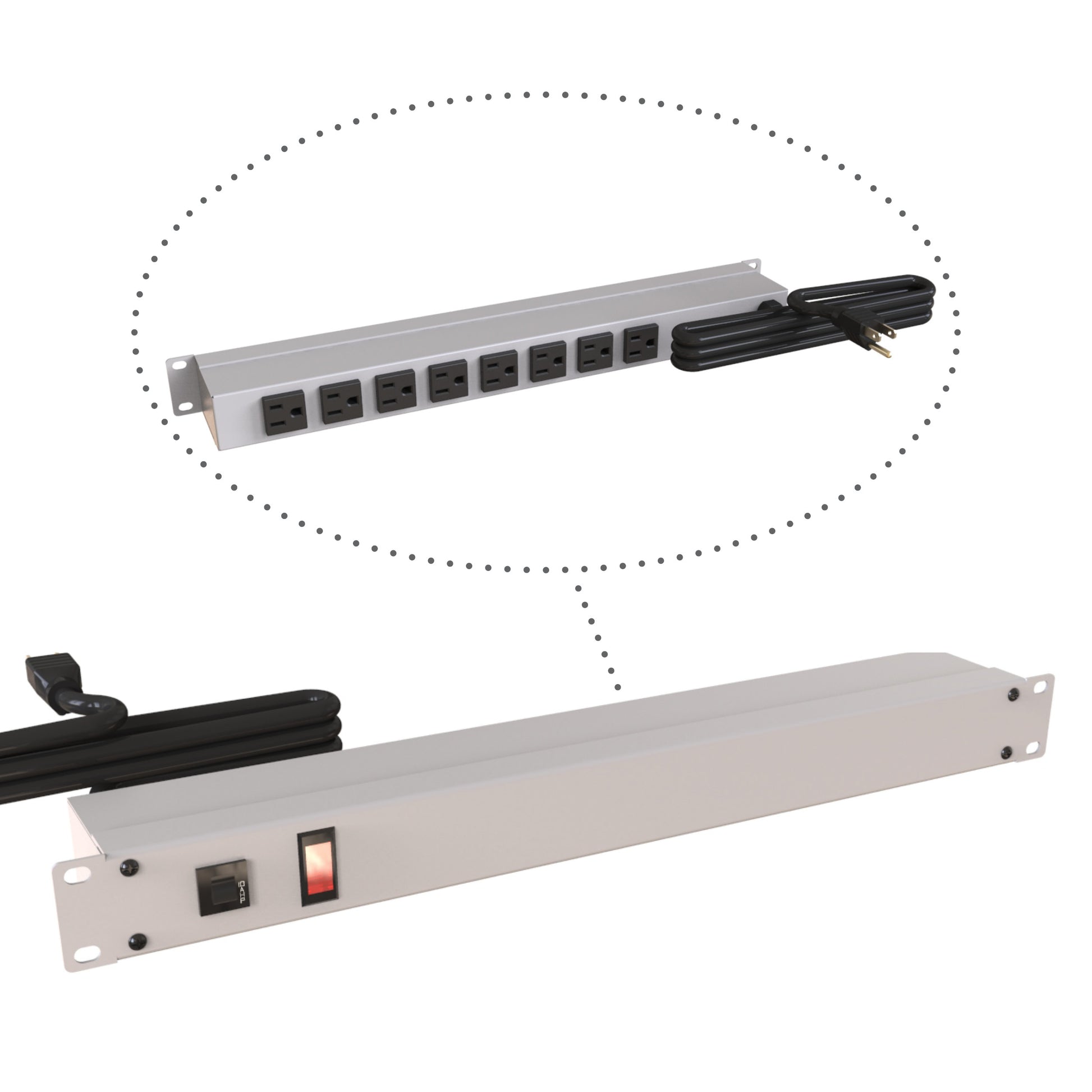

The Hammond Manufacturing 1583T8A1 is listed by Hammond as 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 6 ft cord, Gray, from the Rack Mount Basic PDU (1583 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1583T8A1 specifications
| Catalog number | 1583T8A1 |
| Manufacturer | Hammond Manufacturing |
| Series | Rack Mount Basic PDU (1583 Series) |
| Hammond description | 19-inch Rack Mount Outlet Strip, 15A, 8 Outlets, 6 ft cord, Gray |
| Hammond short description | 19" RACK MOUNT, 8 REC ON REAR |
| Shipping weight | 3.5 lb (1.59 kg) |
| UL File # | E166039 |
| Outlet Strip Type | 1U 19in Rack Mount |
| Rated Voltage | 120 VAC |
| Rated Current (Amps) | 15 |
| Switch Type | No Switch. Power Indicator Light |
| Total Outlets | 8 |
| Outlet Type | 5-15R |
| Plug Type | 5-15P |
| Cord Included | Yes |
| Cord Length (feet) | 6 |
| Shielded Cord | No |
| Surge Protection | No |
| Color | Gray |
| Rotated Outlets | No |
| Hospital Grade | No |
| Metered | No |
| Outlets (Front) | 0 |
| Outlets (Rear) | 8 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1583T8A1. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1583T8A1 · Hammond 1583 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
