1590B3F Hammond Die-Cast Aluminum Enclosure with Bottom Flange, 4.57 x 3.03 x 1.48 in, IP54, Natural Aluminum
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

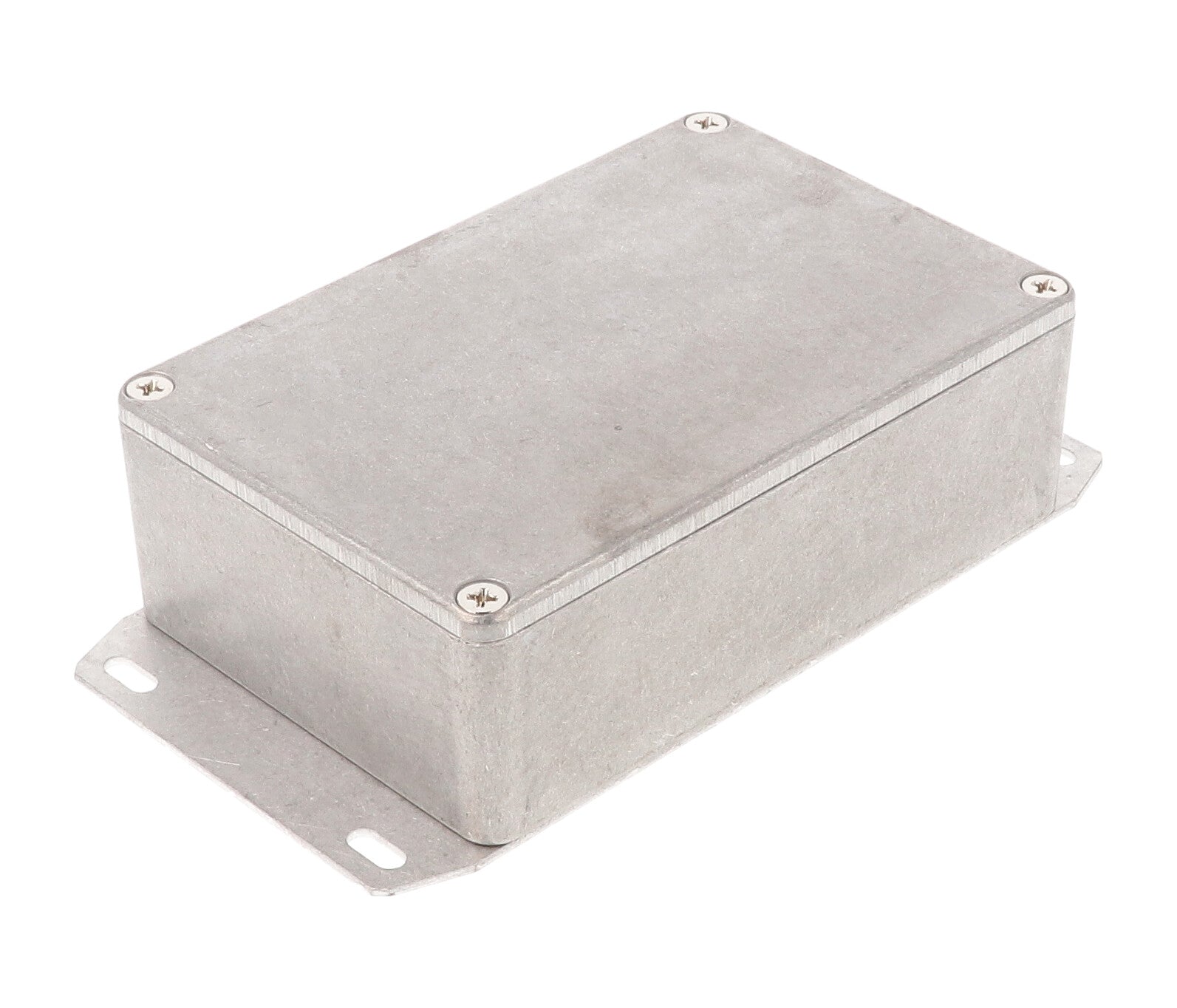

The Hammond Manufacturing 1590B3F is a die-cast aluminum box with a bottom mounting flange, 4.57 x 3.03 x 1.48 in L x W x H (116 x 77 x 38 mm). It has a natural aluminum finish and an IP54 rating. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590B3F specifications
| Catalog number | 1590B3F |
| Manufacturer | Hammond Manufacturing |
| Series | Diecast Aluminum Enclosures (1590 Series) |
| Hammond description | DIECAST BOX WITH FLANGE |
| Type | Die-cast box, flanged |
| Outside size, L x W x H | 4.57 x 3.03 x 1.48 in (116 x 77 x 38 mm) |
| Material | Aluminum (die-cast alloy) |
| Color | Natural Aluminum |
| IP rating | IP54 |
| Max. PC board length | 69.67 mm |
| Max. PC board width | 108.67 mm |
| Shipping weight | 0.51 lb (0.23 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590B3F. Confirm against the current drawing before you drill or mount.
Hammond product page for 1590B3F · Hammond 1590 series specification sheet (PDF).
Holes, cutouts and printing
Hammond can machine, paint and print many 1590 boxes at the factory. Send a drawing or a marked-up sketch with the part number. We check what your part can get and quote the box finished, so it shows up ready to load.
