1590TRPCBK Hammond Trapezoid Die-Cast Aluminum Enclosure, 3.74 x 5.95 x 1.38 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

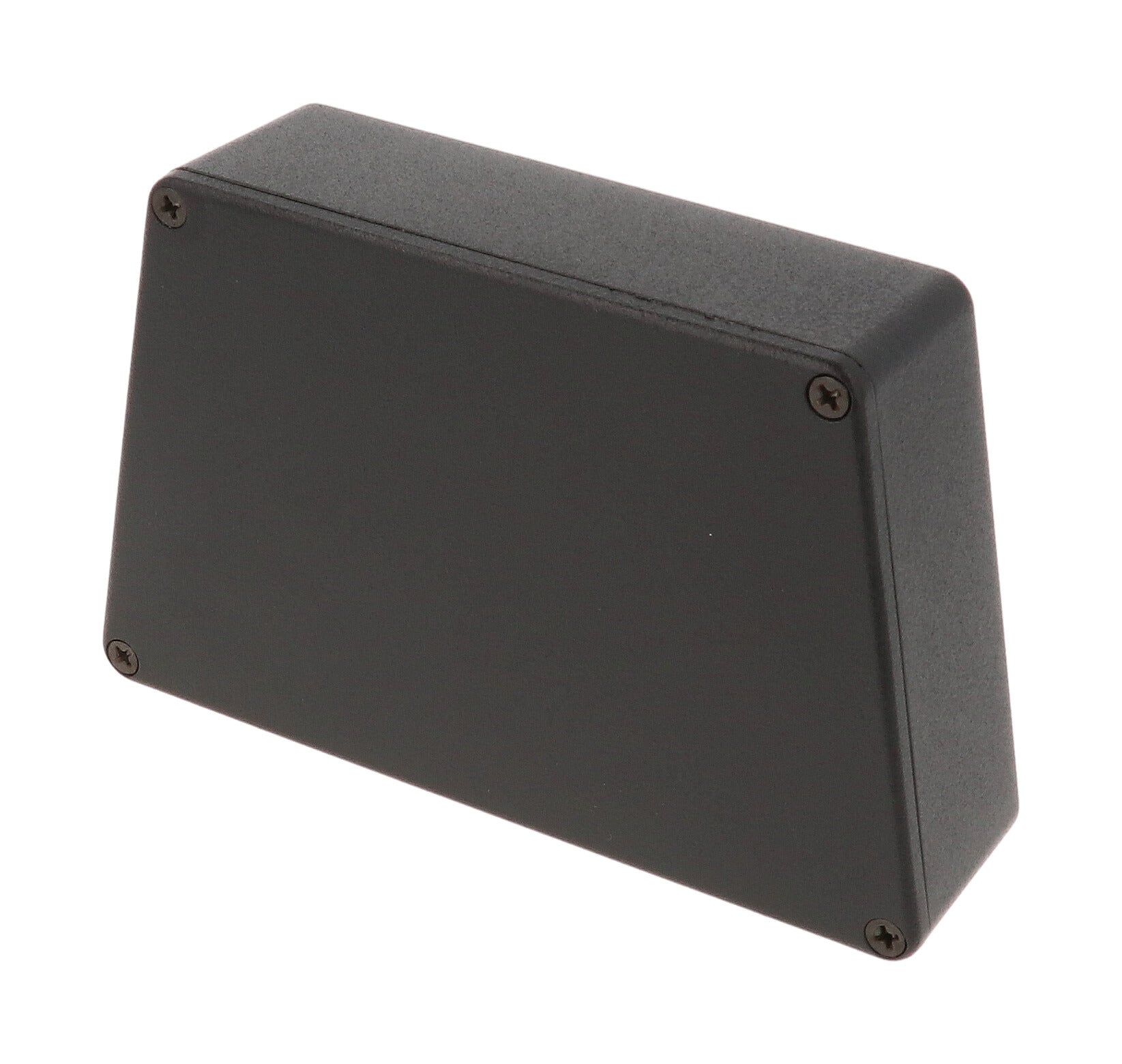

The Hammond Manufacturing 1590TRPCBK is a trapezoid die-cast aluminum box, 3.74 x 5.95 x 1.38 in L x W x H as Hammond lists it (95 x 151 x 35 mm). It has a black finish and an IP54 rating. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590TRPCBK specifications
| Catalog number | 1590TRPCBK |
| Manufacturer | Hammond Manufacturing |
| Series | Octagon & Trapezoid Diecast Aluminum Enclosures (1590TRP-STP Series) |
| Shape | Trapezoid |
| Hammond description | PAINTED DIECAST TRAP ENCLOSURE |
| Type | Die-cast box |
| Outside size, L x W x H | 3.74 x 5.95 x 1.38 in (95 x 151 x 35 mm) |
| Material | Aluminum (die-cast alloy) |
| Color | Black |
| IP rating | IP54 |
| Max. PC board length | 88.3 mm |
| Max. PC board width | 143.32 mm |
| Shipping weight | 0.53 lb (0.24 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590TRPCBK. Confirm against the current drawing before you drill or mount.
Hammond product page for 1590TRPCBK.
Holes, cutouts and printing
Hammond can machine, paint and print many 1590 boxes at the factory. Send a drawing or a marked-up sketch with the part number. We check what your part can get and quote the box finished, so it shows up ready to load.
