1590TRPCCB Hammond Painted Trapezoid Die-Cast Aluminum Enclosure, 3.74 x 5.95 x 1.38 in, IP54, Blue
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

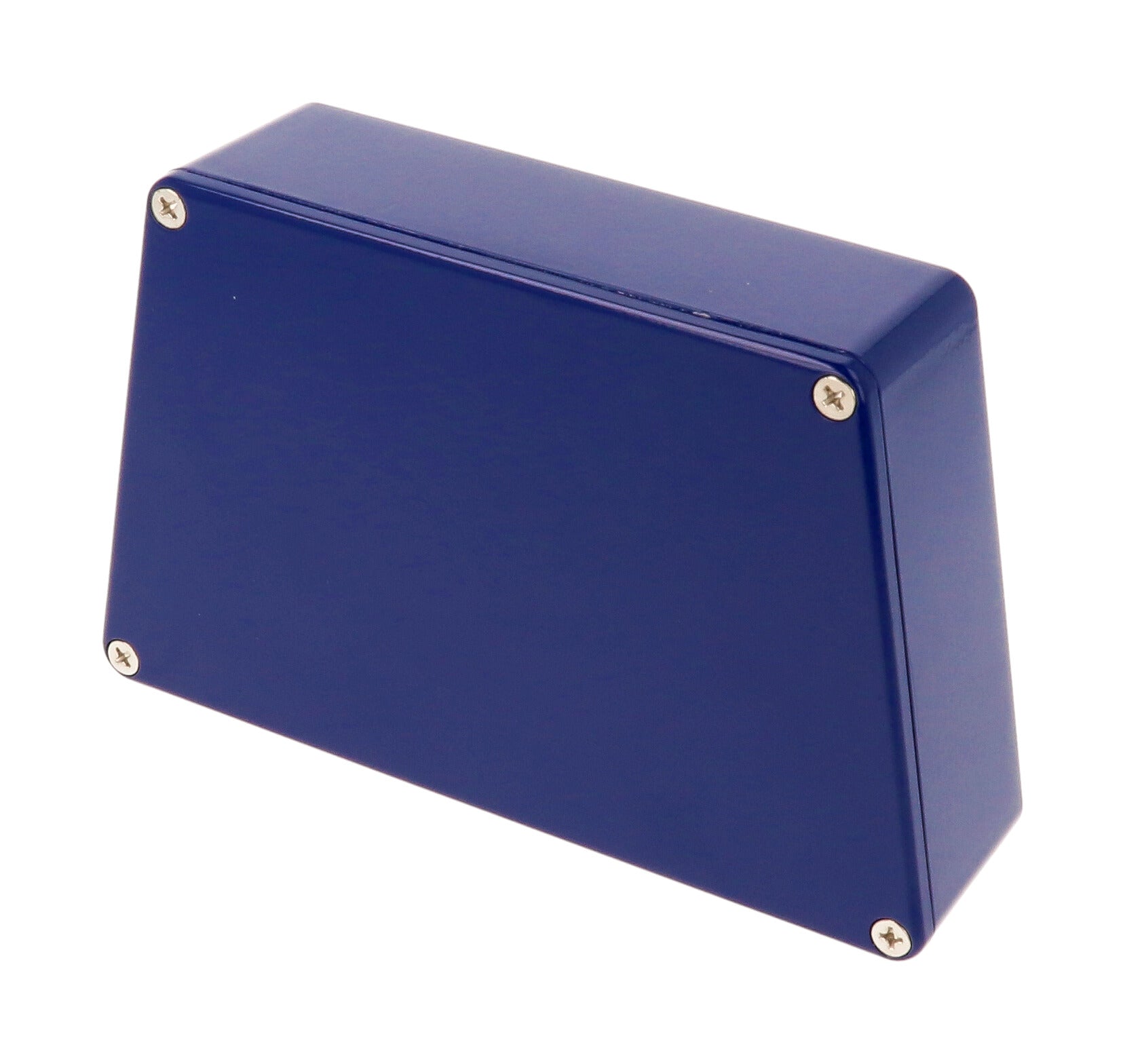

The Hammond Manufacturing 1590TRPCCB is a painted trapezoid die-cast aluminum box from the 1590-STOMP series, 3.74 x 5.95 x 1.38 in L x W x H as Hammond lists it (95 x 151 x 35 mm). It has a blue finish and an IP54 rating. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590TRPCCB specifications
| Catalog number | 1590TRPCCB |
| Manufacturer | Hammond Manufacturing |
| Series | Painted Diecast Stomp Box Enclosures (1590-STOMP Series) |
| Shape | Trapezoid |
| Hammond description | PAINTED DIECAST TRAP ENCLOSURE |
| Type | Die-cast box |
| Outside size, L x W x H | 3.74 x 5.95 x 1.38 in (95 x 151 x 35 mm) |
| Material | Aluminum (die-cast alloy) |
| Color | Blue |
| IP rating | IP54 |
| Max. PC board length | 88.3 mm |
| Max. PC board width | 143.32 mm |
| Shipping weight | 0.53 lb (0.24 kg) |
| Replacement lid screws | 1590MS100, 100-pack |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590TRPCCB. Confirm against the current drawing before you drill or mount.
Hammond product page for 1590TRPCCB.
Holes, cutouts and printing
Hammond can machine, paint and print many 1590 boxes at the factory. Send a drawing or a marked-up sketch with the part number. We check what your part can get and quote the box finished, so it shows up ready to load.
