1590WB Hammond Watertight Die-Cast Aluminum Enclosure, 4.43 x 2.38 x 1.22 in, IP65, Natural Aluminum
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

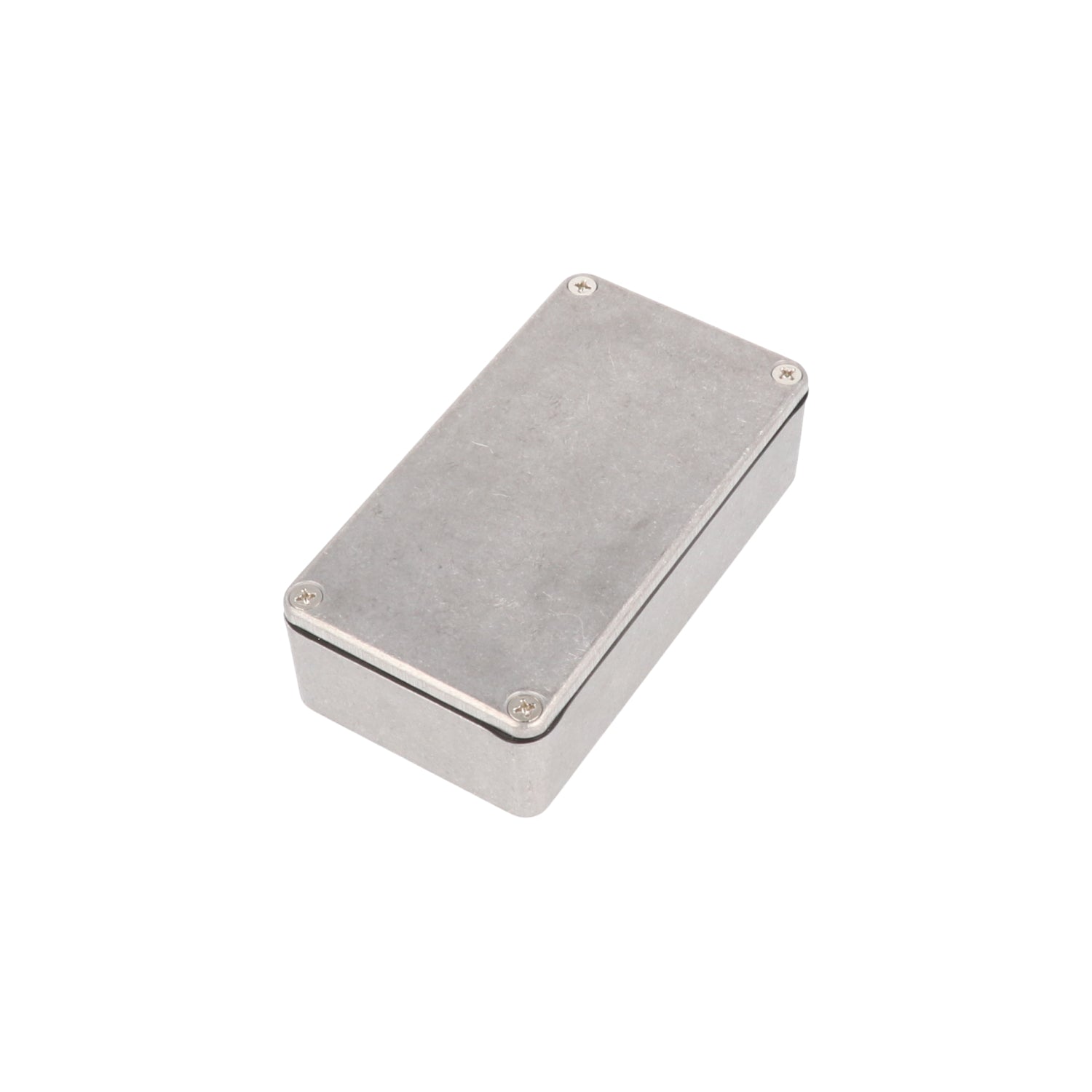

The Hammond Manufacturing 1590WB is a watertight die-cast aluminum box, 4.43 x 2.38 x 1.22 in L x W x H (113 x 60 x 31 mm). It has a natural aluminum finish and an IP65 rating. Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity and any holes, cutouts or printing, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590WB specifications
| Catalog number | 1590WB |
| Manufacturer | Hammond Manufacturing |
| Series | Diecast Aluminum Enclosures (1590 Series) |
| Hammond description | 1590B WATERPROOF |
| Type | Die-cast box, water-tight |
| Outside size, L x W x H | 4.43 x 2.38 x 1.22 in (113 x 60 x 31 mm) |
| Material | Aluminum (die-cast alloy) |
| Color | Natural Aluminum |
| IP rating | IP65 |
| Max. PC board length | 53.45 mm |
| Max. PC board width | 105.05 mm |
| Shipping weight | 0.31 lb (0.14 kg) |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590WB. Confirm against the current drawing before you drill or mount.
Hammond product page for 1590WB · Hammond 1590 series specification sheet (PDF).
Holes, cutouts and printing
Hammond can machine, paint and print many 1590 boxes at the factory. Send a drawing or a marked-up sketch with the part number. We check what your part can get and quote the box finished, so it shows up ready to load. Holes in a watertight box need sealed fittings to hold IP65.
More Hammond boxes at Hammond Manufacturing and enclosures. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
