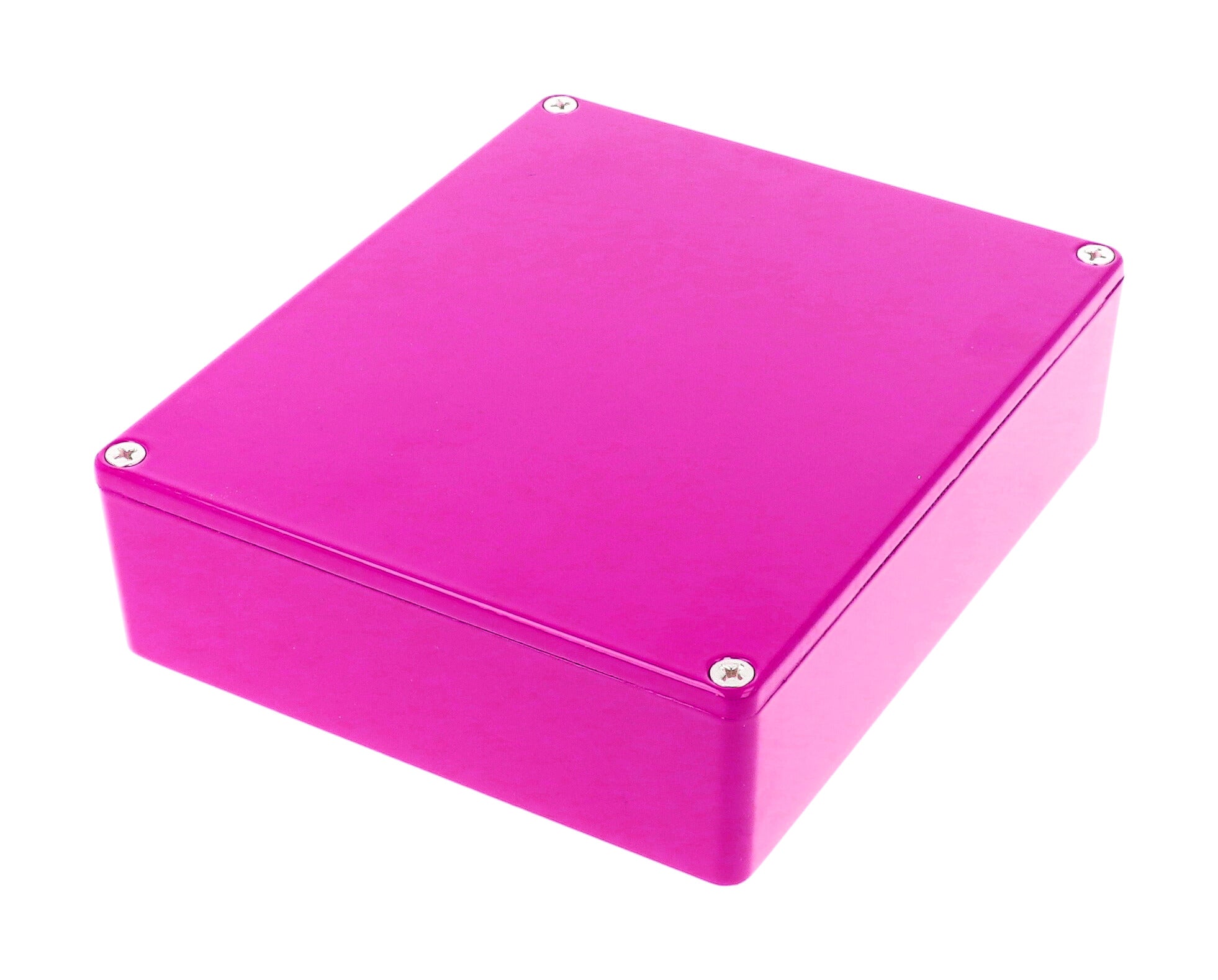

1590XXPR Hammond Painted Diecast Stomp Box Enclosure, 5.72 x 4.77 x 1.55 in, IP54, Purple
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1590XXPR is listed by Hammond as enclosure, diecast, from the Painted Diecast Stomp Box Enclosures (1590-STOMP Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590XXPR specifications
| Catalog number | 1590XXPR |
| Manufacturer | Hammond Manufacturing |
| Series | Painted Diecast Stomp Box Enclosures (1590-STOMP Series) |
| Hammond description | enclosure, diecast |
| Hammond short description | DIECAST |
| Size L x W x H | 5.72 x 4.77 x 1.55 in (145 x 121 x 39 mm) |
| Shipping weight | 0.73 lb (0.33 kg) |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Purple |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box |
| Max. P.C. Board Length (mm) | 114 |
| Max. P.C. Board Width (mm) | 138 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590XXPR. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1590XXPR · Hammond 1590-STOMP series specification sheet (PDF).
