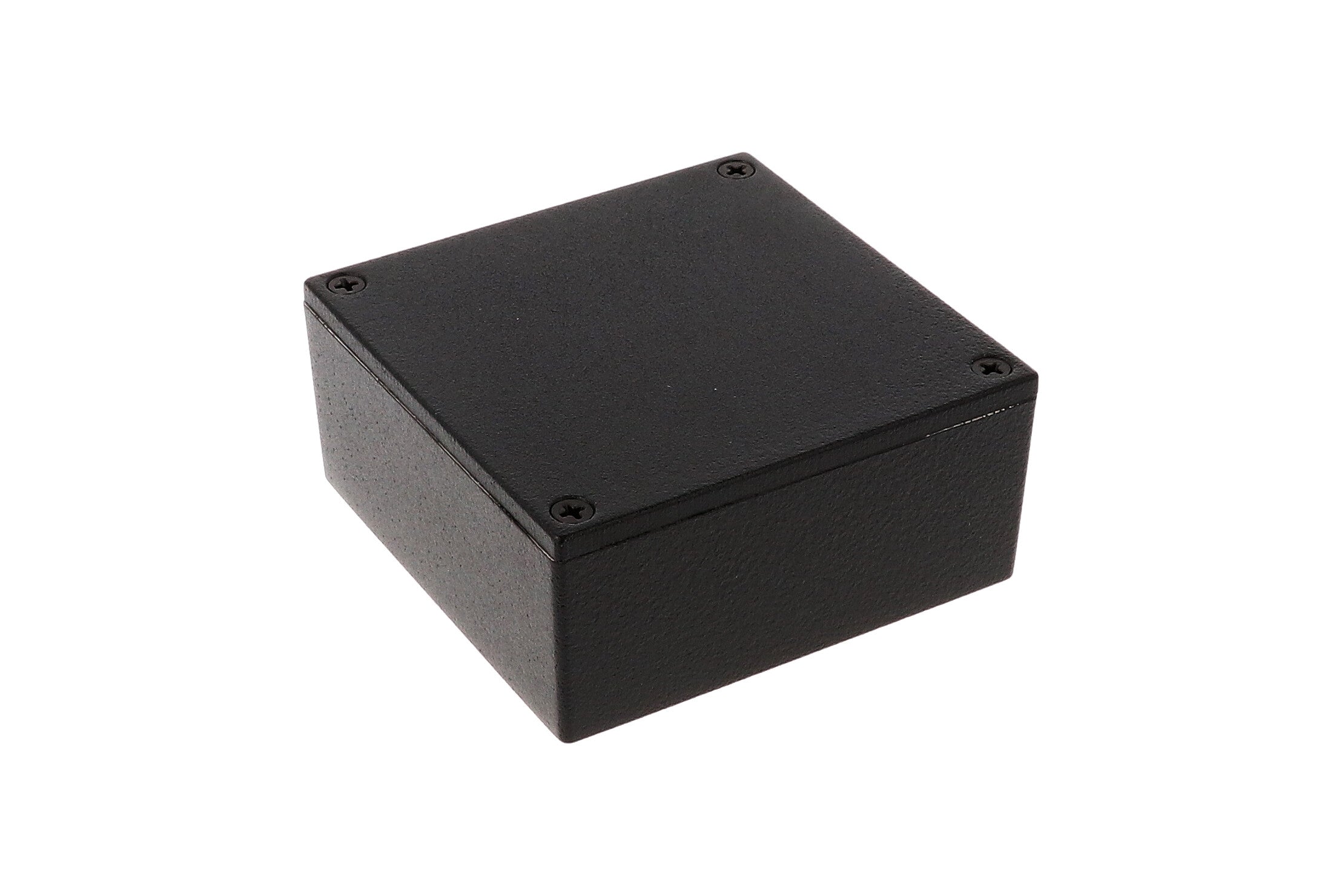

1590YBK Hammond Diecast Aluminum Enclosure, 3.62 x 3.62 x 1.65 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1590YBK is listed by Hammond as enclosure, diecast; black; 3.62"x3.62"x1.50", from the Diecast Aluminum Enclosures (1590 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590YBK specifications
| Catalog number | 1590YBK |
| Manufacturer | Hammond Manufacturing |
| Series | Diecast Aluminum Enclosures (1590 Series) |
| Hammond description | enclosure, diecast; black; 3.62"x3.62"x1.50" |
| Hammond short description | 92 X 92 X 42MM BLACK ALUM BOX |
| Size L x W x H | 3.62 x 3.62 x 1.65 in (92 x 92 x 42 mm) |
| Shipping weight | 0.55 lb (0.25 kg) |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box |
| Max. P.C. Board Length (mm) | 84.17 |
| Max. P.C. Board Width (mm) | 84.17 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590YBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1590YBK · Hammond 1590 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
