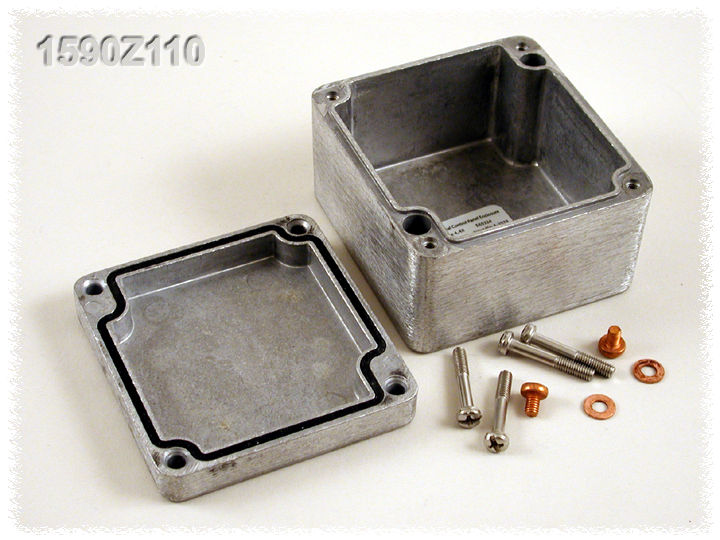

1590Z110 Hammond Type 4X/ 6P Diecast Aluminum Enclosure, 2.94 x 3.14 x 2.05 in, NEMA 4, 4X, 6, 6P, 12 & 13
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1590Z110 is listed by Hammond as enclosure, diecast, from the Type 4X/ 6P Diecast Aluminum Enclosures (1590Z Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590Z110 specifications
| Catalog number | 1590Z110 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X/ 6P Diecast Aluminum Enclosures (1590Z Series) |
| Hammond description | enclosure, diecast |
| Hammond short description | 80 X 75 X 52 HD ALM ENCL. |
| Size L x W x H | 2.94 x 3.14 x 2.05 in (75 x 80 x 52 mm) |
| Shipping weight | 0.63 lb (0.29 kg) |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 68.5 |
| Max. P.C. Board Width (mm) | 63 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590Z110. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1590Z110 · Hammond 1590Z series specification sheet (PDF).
