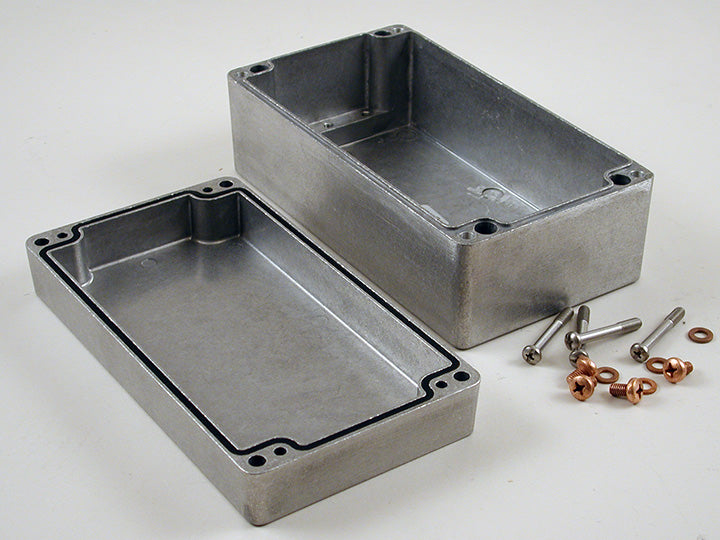

1590Z155 Hammond Type 4X/ 6P Diecast Aluminum Enclosure, 8.7 x 4.74 x 3.54 in, NEMA 4, 4X, 6, 6P, 12 & 13
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1590Z155 is listed by Hammond as enclosure, diecast, from the Type 4X/ 6P Diecast Aluminum Enclosures (1590Z Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1590Z155 specifications
| Catalog number | 1590Z155 |
| Manufacturer | Hammond Manufacturing |
| Series | Type 4X/ 6P Diecast Aluminum Enclosures (1590Z Series) |
| Hammond description | enclosure, diecast |
| Hammond short description | 120 X 220 X 90 HD ALM ENCL. |
| Size L x W x H | 8.7 x 4.74 x 3.54 in (221 x 120 x 90 mm) |
| Shipping weight | 2.93 lb (1.33 kg) |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Max. P.C. Board Length (mm) | 105.82 |
| Max. P.C. Board Width (mm) | 206.71 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1590Z155. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1590Z155 · Hammond 1590Z series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
