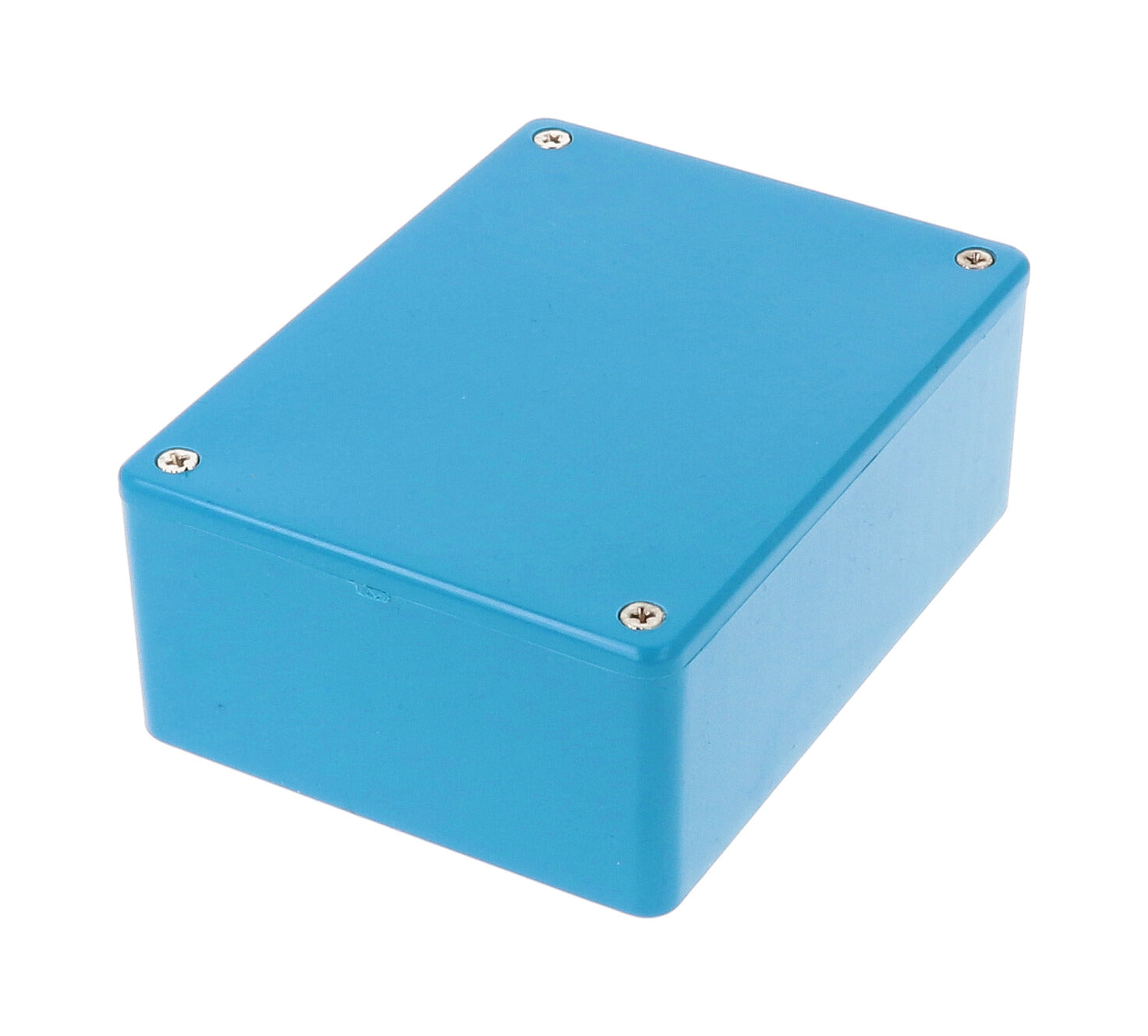

1591SBU Hammond ABS Plastic Multipurpose Enclosure with Card Guide, 4.33 x 3.24 x 1.73 in, IP54, Blue
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1591SBU is listed by Hammond as enclosure, plastic, from the ABS Plastic Multipurpose Enclosures w/ Card Guides (1591 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1591SBU specifications
| Catalog number | 1591SBU |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Multipurpose Enclosures w/ Card Guides (1591 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | ABS PLASTIC |
| Size L x W x H | 4.33 x 3.24 x 1.73 in (110 x 82 x 44 mm) |
| Shipping weight | 0.23 lb (0.10 kg) |
| Material | ABS Plastic |
| Color | Blue |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | project box, general purpose |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1591SBU. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1591SBU · Hammond 1591 series specification sheet (PDF) · 1591Z Card Guide Instructions (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
