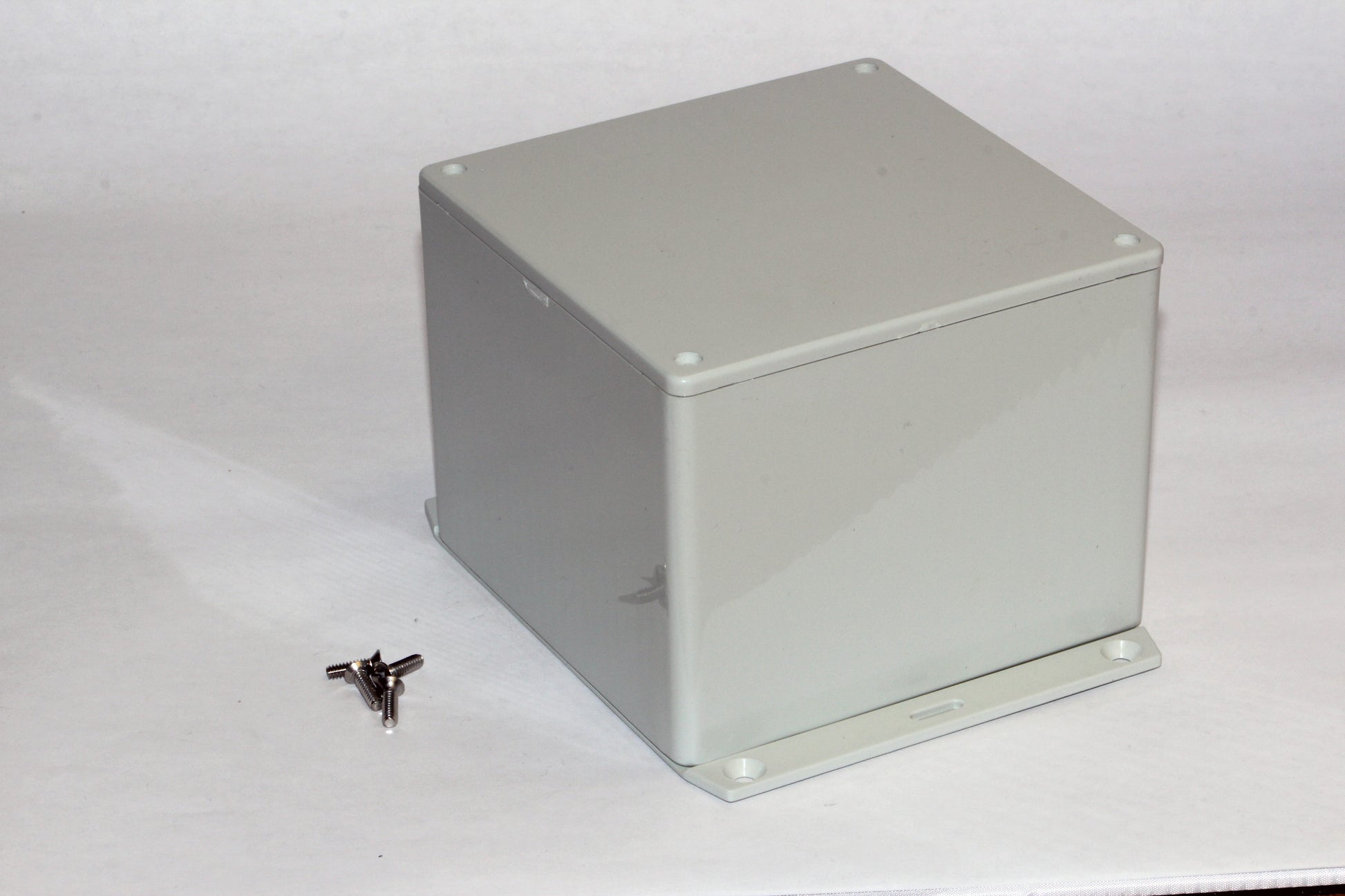

1591VF2GY Hammond ABS Plastic Multipurpose Enclosure with Card Guide, 4.72 x 4.72 x 3.7 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1591VF2GY is listed by Hammond as enclosure, plastic, from the ABS Plastic Multipurpose Enclosures w/ Card Guides (1591 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1591VF2GY specifications
| Catalog number | 1591VF2GY |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Multipurpose Enclosures w/ Card Guides (1591 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 1591V ABS WITH FLANGE |
| Size L x W x H | 4.72 x 4.72 x 3.7 in (120 x 120 x 94 mm) |
| Shipping weight | 0.56 lb (0.25 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | general purpose, flanged |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1591VF2GY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1591VF2GY · Hammond 1591 series specification sheet (PDF) · 1591Z Card Guide Instructions (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
