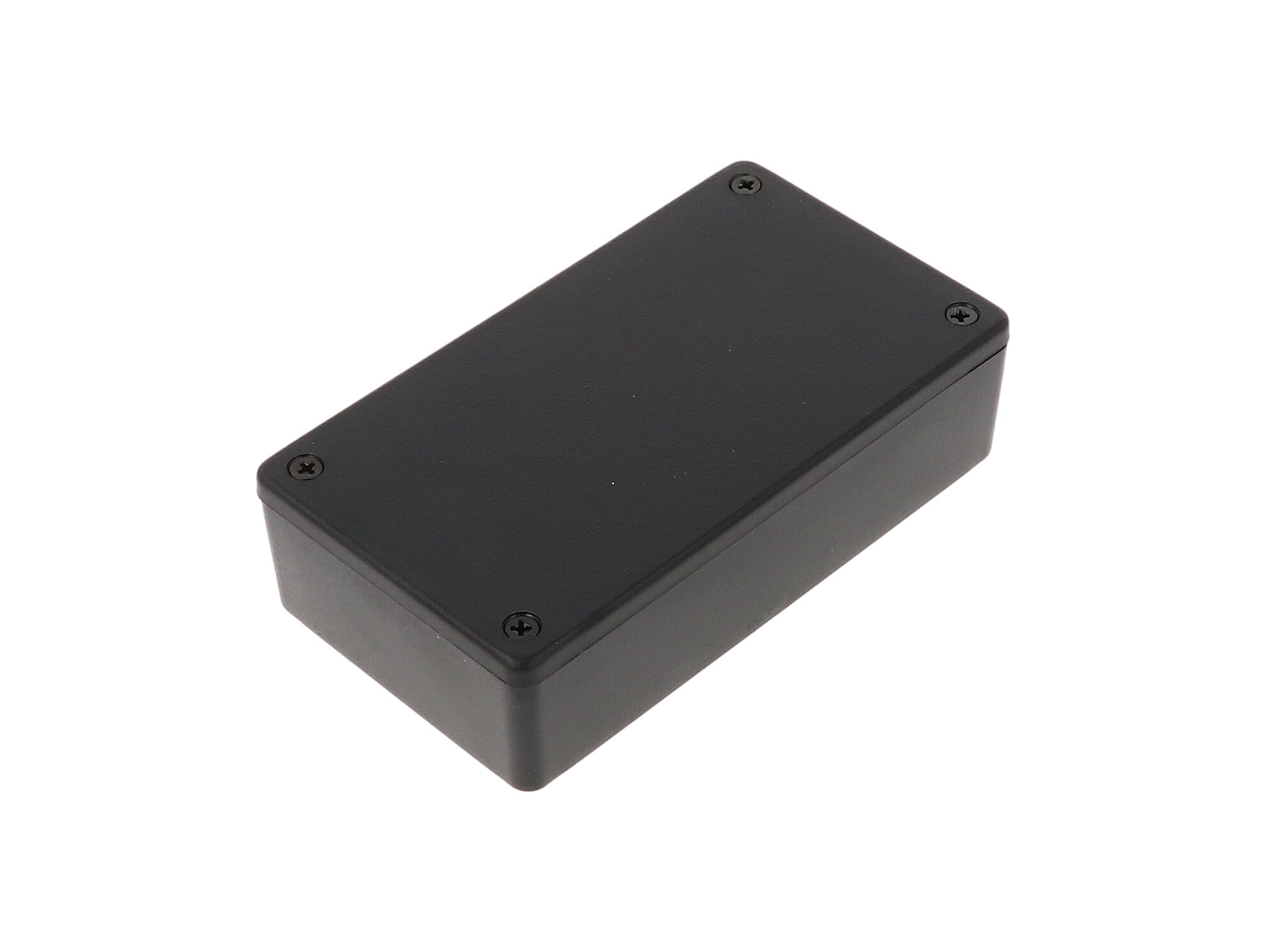

1591XXBBK Hammond ABS Plastic Multi-Purpose Enclosure with PC Board Standoffs, 4.4 x 2.5 x 1.1 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1591XXBBK is listed by Hammond as enclosure, plastic, from the ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs (1591XX Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1591XXBBK specifications
| Catalog number | 1591XXBBK |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs (1591XX Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 1591XXB BLACK FRABS |
| Size L x W x H | 4.4 x 2.5 x 1.1 in (112 x 64 x 28 mm) |
| Shipping weight | 0.14 lb (0.06 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | project box, general purpose |
| Max. P.C. Board Length (mm) | 57.5 |
| Max. P.C. Board Width (mm) | 108 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1591XXBBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1591XXBBK · Hammond 1591XX series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
