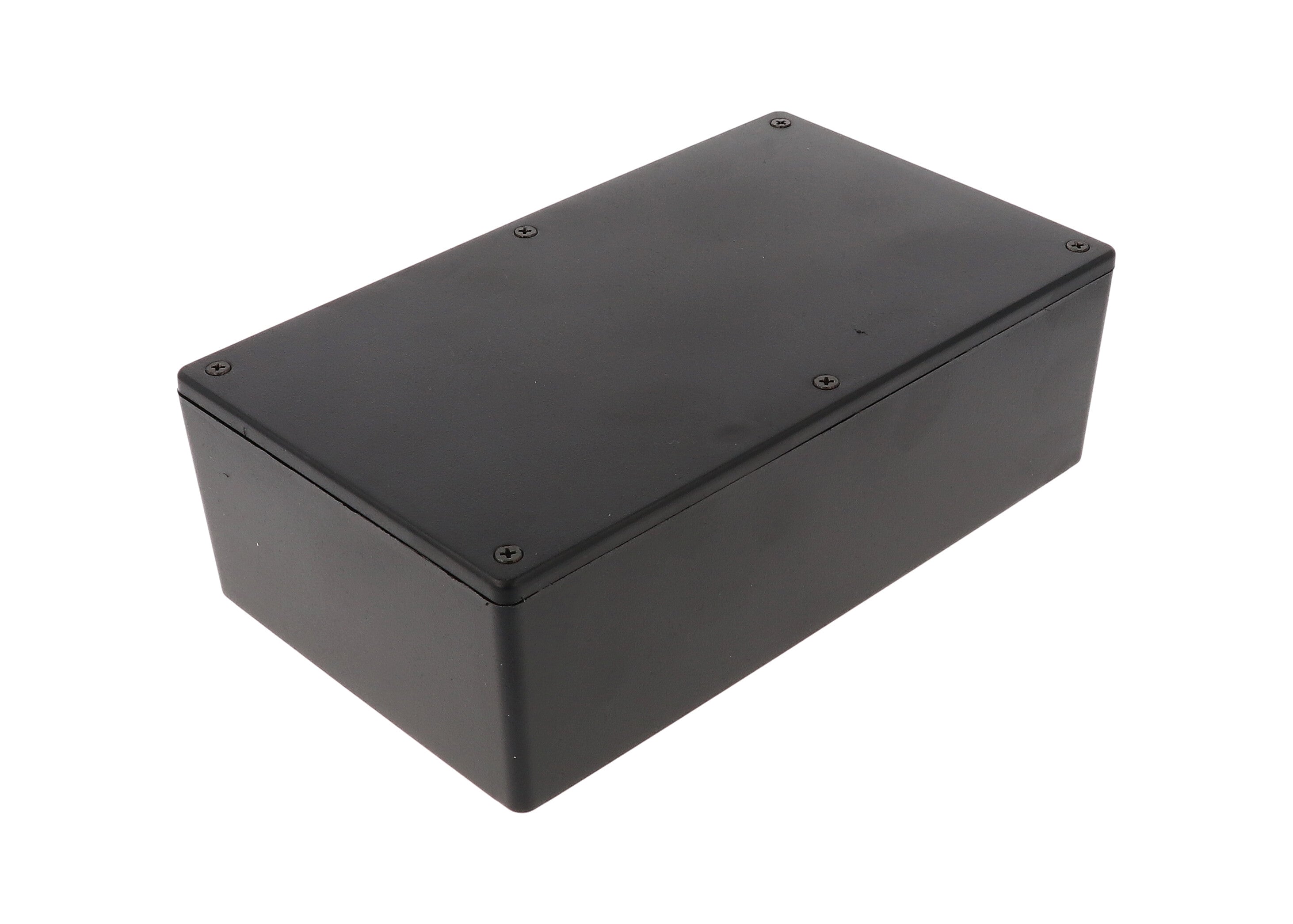

1591XXEBK Hammond ABS Plastic Multi-Purpose Enclosure with PC Board Standoffs, 7.6 x 4.4 x 2.2 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1591XXEBK is listed by Hammond as enclosure, plastic, from the ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs (1591XX Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1591XXEBK specifications
| Catalog number | 1591XXEBK |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs (1591XX Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 1591XXE BLACK FRABS |
| Size L x W x H | 7.6 x 4.4 x 2.2 in (193 x 112 x 56 mm) |
| Shipping weight | 0.47 lb (0.21 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | project box, general purpose |
| Max. P.C. Board Length (mm) | 105 |
| Max. P.C. Board Width (mm) | 185 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1591XXEBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1591XXEBK · Hammond 1591XX series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
