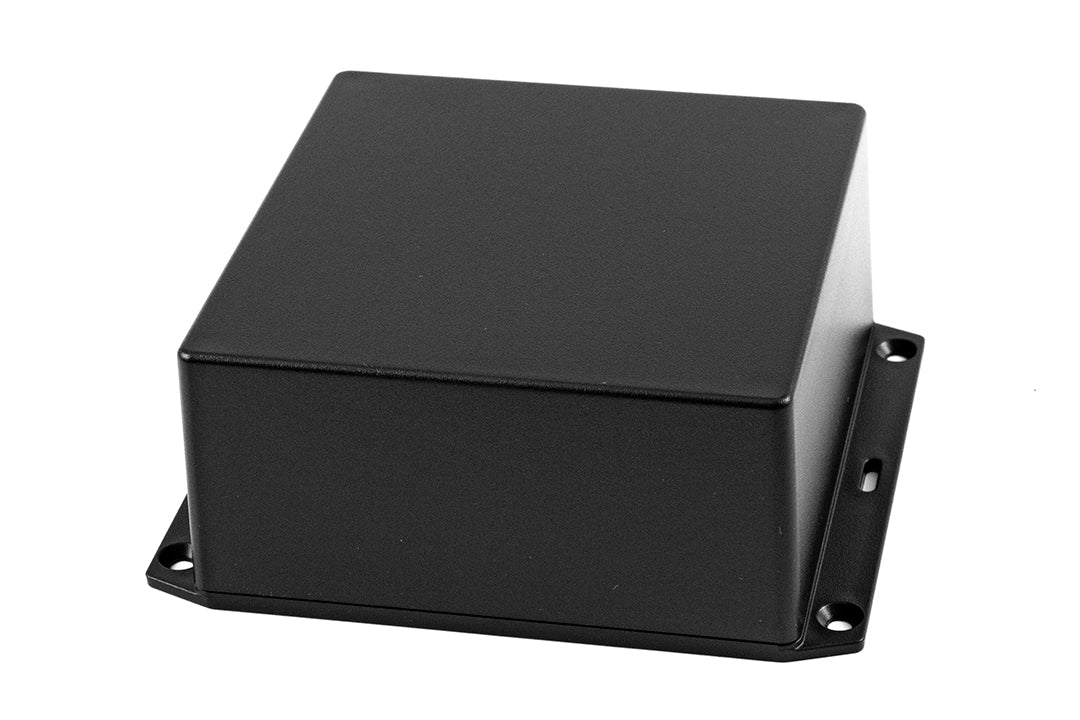

1591XXUSFLBK Hammond ABS Plastic Multi-Purpose Enclosure with PC Board Standoffs, 4.86 x 4.86 x 2.25 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1591XXUSFLBK is listed by Hammond as enclosure, plastic, from the ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs (1591XX Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1591XXUSFLBK specifications
| Catalog number | 1591XXUSFLBK |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs (1591XX Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | GPABS PLASTIC CASE |
| Size L x W x H | 4.86 x 4.86 x 2.25 in (123 x 123 x 57 mm) |
| Shipping weight | 0.3 lb (0.14 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | general purpose, flanged |
| Max. P.C. Board Length (mm) | 114 |
| Max. P.C. Board Width (mm) | 114 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1591XXUSFLBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1591XXUSFLBK · Hammond 1591XX series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
