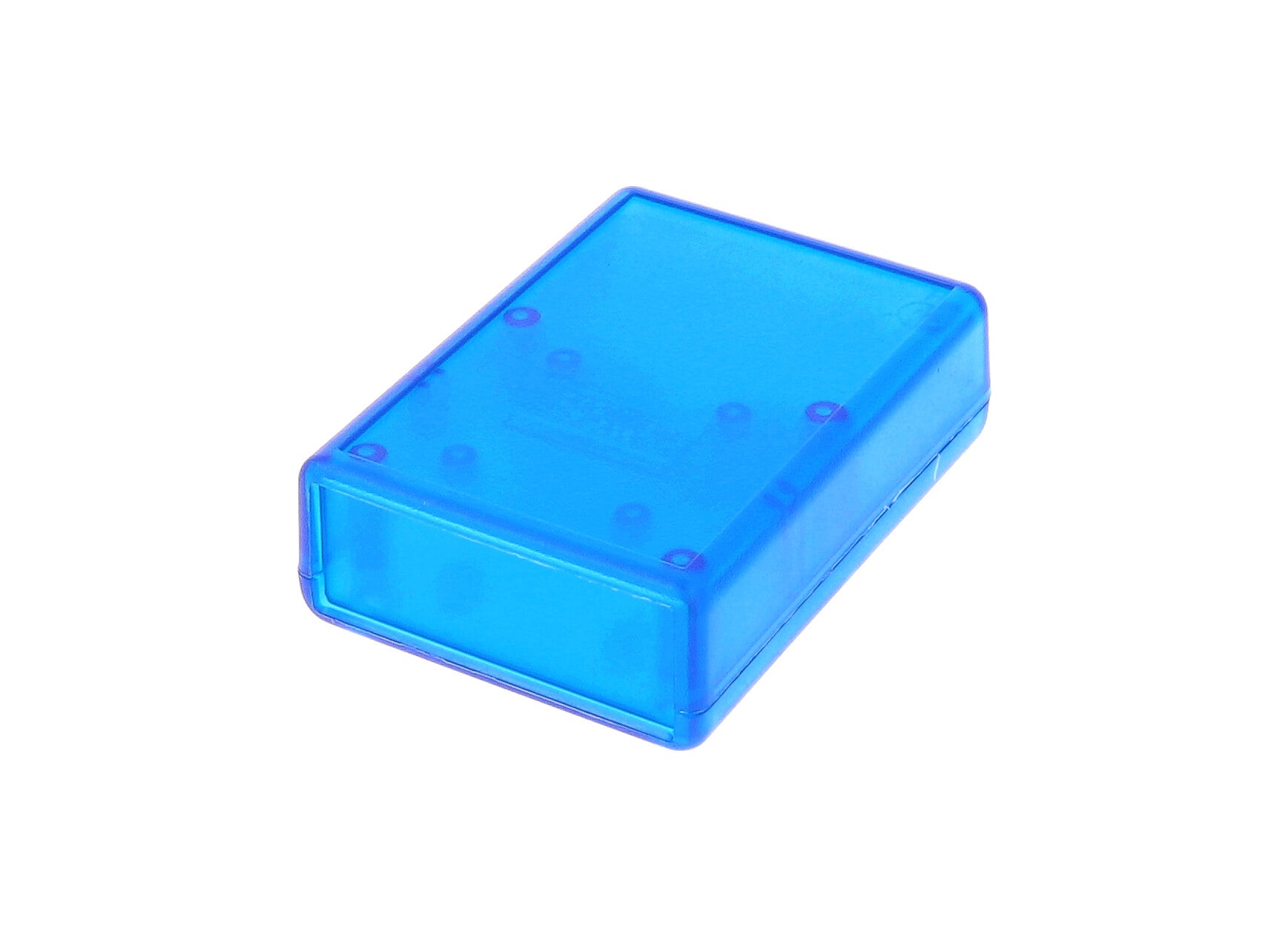

1593PTBU Hammond ABS Plastic Hand Held/Instrument Enclosure, 3.6 x 2.6 x 1.1 in, Trans. Blue
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1593PTBU is listed by Hammond as enclosure, plastic, from the ABS Plastic Hand Held/Instrument Enclosures (1593 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1593PTBU specifications
| Catalog number | 1593PTBU |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Hand Held/Instrument Enclosures (1593 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 1593P TRANSPARENT BLUE |
| Size L x W x H | 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm) |
| Shipping weight | 0.13 lb (0.06 kg) |
| Material | ABS Plastic |
| Color | Trans. Blue |
| Flame Rating | UL94 HB |
| Product Category | Enclosures |
| Type | General purpose |
| Max. P.C. Board Length (mm) | 48.89 |
| Max. P.C. Board Width (mm) | 59.73 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1593PTBU. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1593PTBU · Hammond 1593 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
