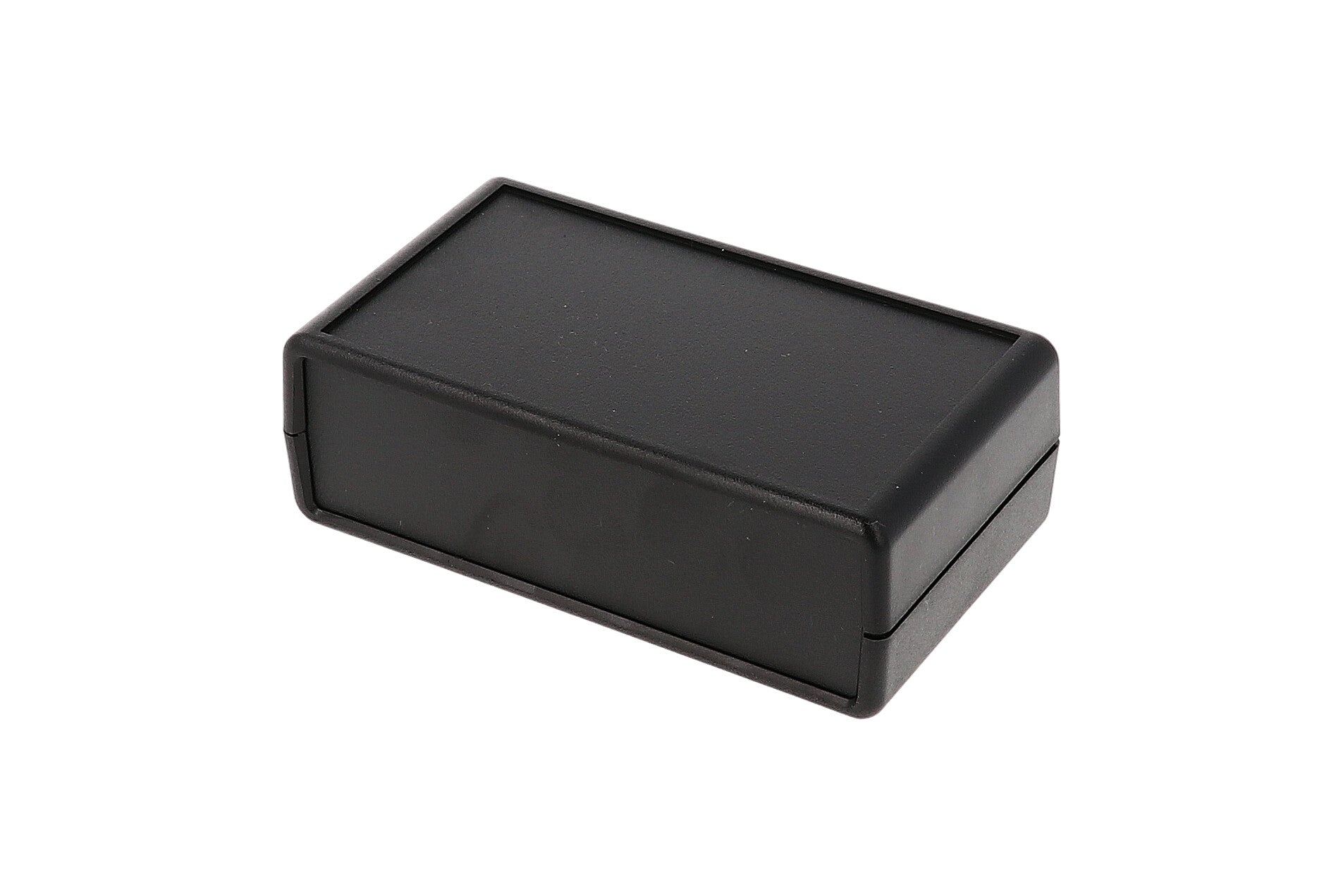

1593VBK Hammond ABS Plastic Hand Held/Instrument Enclosure, General Purpose, 4.13 x 2.36 x 1.38 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1593VBK is listed by Hammond as enclosure, plastic, from the ABS Plastic Hand Held/Instrument Enclosures (1593 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1593VBK specifications
| Catalog number | 1593VBK |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Hand Held/Instrument Enclosures (1593 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 105X60X35MM ABS ENCL BK |
| Size L x W x H | 4.13 x 2.36 x 1.38 in (105 x 60 x 35 mm) |
| Shipping weight | 0.12 lb (0.05 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Type | General purpose |
| Max. P.C. Board Length (mm) | 98 |
| Max. P.C. Board Width (mm) | 48 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1593VBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1593VBK · Hammond 1593 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
