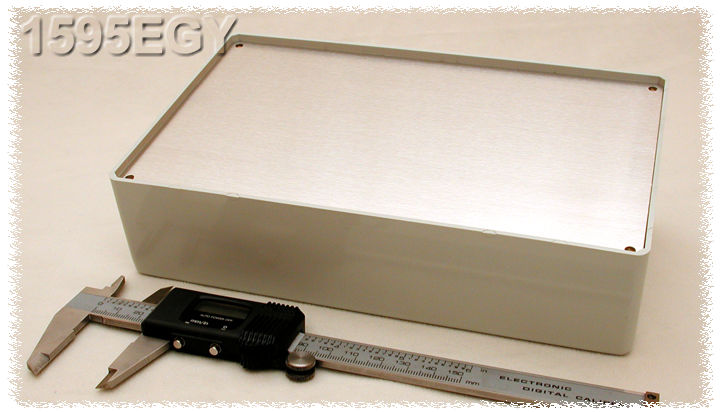

1595EGY Hammond Plastic Console Enclosure, 8.46 x 5.12 x 2.95 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1595EGY is listed by Hammond as enclosure, plastic, from the Plastic Console Enclosures (1595 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1595EGY specifications
| Catalog number | 1595EGY |
| Manufacturer | Hammond Manufacturing |
| Series | Plastic Console Enclosures (1595 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | PLASTIC CONSOLE 8.5X5.1X2.9C90 |
| Size L x W x H | 8.46 x 5.12 x 2.95 in (215 x 130 x 75 mm) |
| Shipping weight | 0.77 lb (0.35 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Sloped Console |
| Max. P.C. Board Length (mm) | 112.53 |
| Max. P.C. Board Width (mm) | 206.48 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1595EGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1595EGY · Hammond 1595 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
