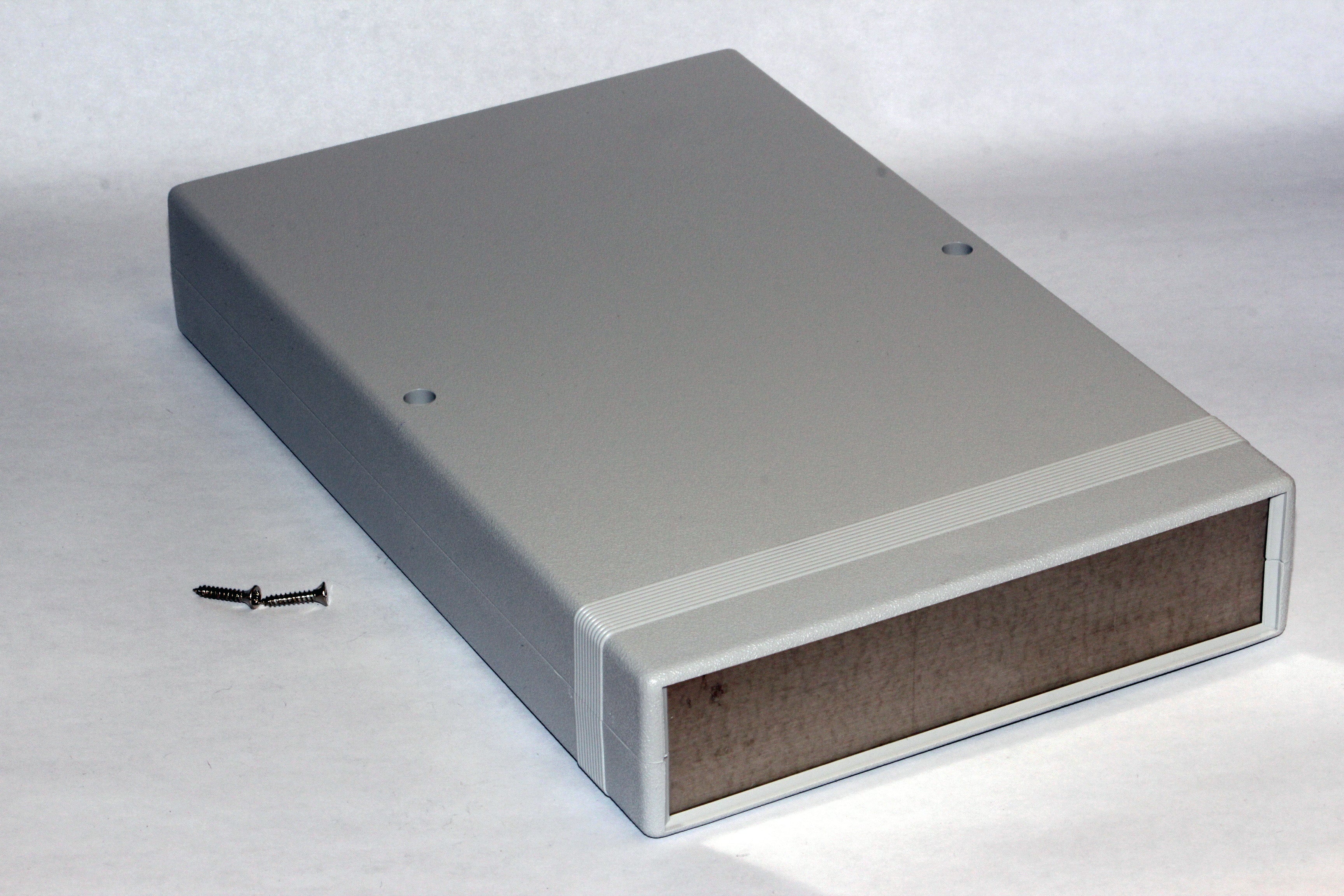

1598FSGY Hammond ABS Plastic Instrument Enclosure, 9.8 x 6.3 x 1.6 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1598FSGY is listed by Hammond as enclosure, plastic, from the ABS Plastic Instrument Enclosures (1598 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1598FSGY specifications
| Catalog number | 1598FSGY |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Instrument Enclosures (1598 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | PLASTIC CLAM SHELL BOX |
| Size L x W x H | 9.8 x 6.3 x 1.6 in (249 x 160 x 41 mm) |
| Shipping weight | 0.91 lb (0.41 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Instrument Case |
| Max. P.C. Board Length (mm) | 144.71 |
| Max. P.C. Board Width (mm) | 238.35 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1598FSGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1598FSGY · Hammond 1598 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
