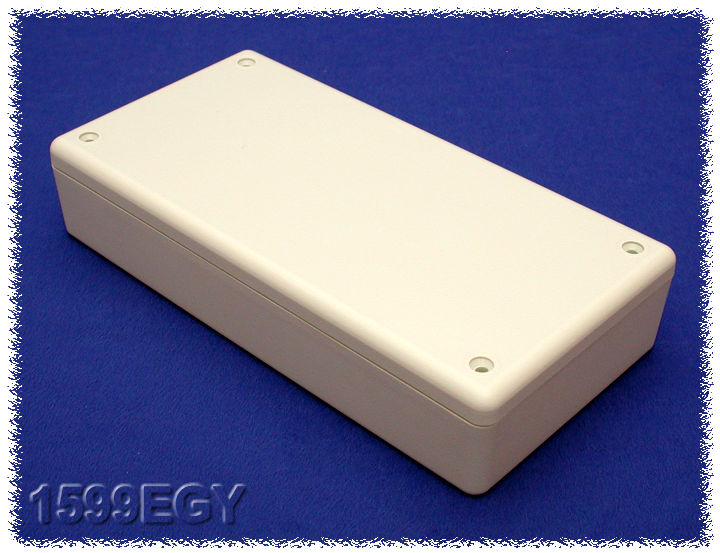

1599EGY Hammond Hand Held Enclosure, 6.7 x 3.35 x 1.33 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1599EGY is listed by Hammond as enclosure, plastic, from the Hand Held Enclosures (1599 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1599EGY specifications
| Catalog number | 1599EGY |
| Manufacturer | Hammond Manufacturing |
| Series | Hand Held Enclosures (1599 Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | HAND HELD CASE & LID FRABS |
| Size L x W x H | 6.7 x 3.35 x 1.33 in (170 x 85 x 34 mm) |
| Shipping weight | 0.31 lb (0.14 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand-held, general purpose |
| Max. P.C. Board Length (mm) | 72 |
| Max. P.C. Board Width (mm) | 162.5 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1599EGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1599EGY · Hammond 1599 series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
