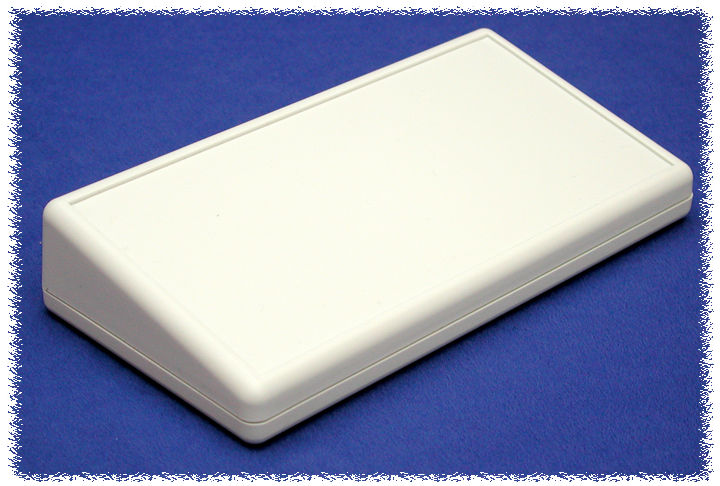

1599ETSGY Hammond ABS Plastic Sloping Console, 1.34 x 6.69 x 3.37 in, IP54, Light Gray
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1599ETSGY is listed by Hammond as enclosure, plastic, from the ABS Plastic Sloping Consoles (1599T Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1599ETSGY specifications
| Catalog number | 1599ETSGY |
| Manufacturer | Hammond Manufacturing |
| Series | ABS Plastic Sloping Consoles (1599T Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 1599E SHORT TILT GRY CASE |
| Size L x W x H | 1.34 x 6.69 x 3.37 in (34 x 170 x 86 mm) |
| Shipping weight | 0.3 lb (0.14 kg) |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Sloped Console |
| Max. P.C. Board Length (mm) | 72 |
| Max. P.C. Board Width (mm) | 162.5 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1599ETSGY. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1599ETSGY · Hammond 1599T series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
