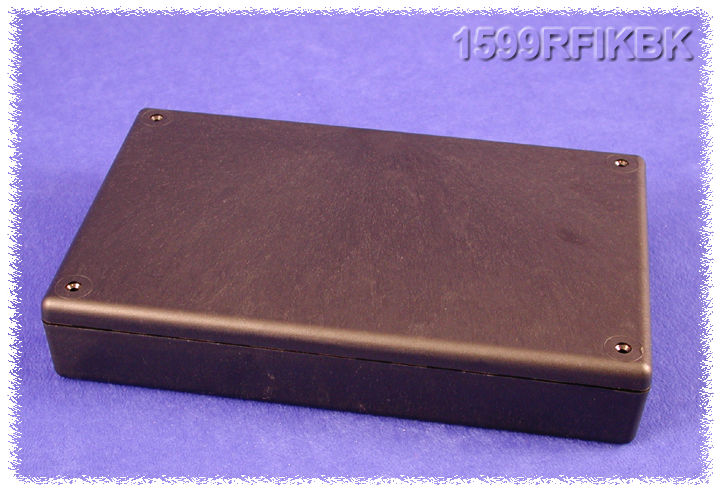

1599RFIKBK Hammond Hand-Held Plastic Enclosure with EMI/ RFI Shielding, 8.66 x 5.5 x 1.6 in, IP54, Black
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 1599RFIKBK is listed by Hammond as enclosure, plastic, from the Hand-Held Plastic Enclosures w/ EMI/ RFI Shielding (1599RFI Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1599RFIKBK specifications
| Catalog number | 1599RFIKBK |
| Manufacturer | Hammond Manufacturing |
| Series | Hand-Held Plastic Enclosures w/ EMI/ RFI Shielding (1599RFI Series) |
| Hammond description | enclosure, plastic |
| Hammond short description | 1599K SHIELDED PLASTIC |
| Size L x W x H | 8.66 x 5.5 x 1.6 in (220 x 140 x 41 mm) |
| Shipping weight | 0.69 lb (0.31 kg) |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand held, EMI/ RFI |
| Max. P.C. Board Length (mm) | 131 |
| Max. P.C. Board Width (mm) | 211 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1599RFIKBK. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1599RFIKBK · Hammond 1599RFI series specification sheet (PDF) · Plastic Chemical Resistance Statement 10-2023 (PDF).
