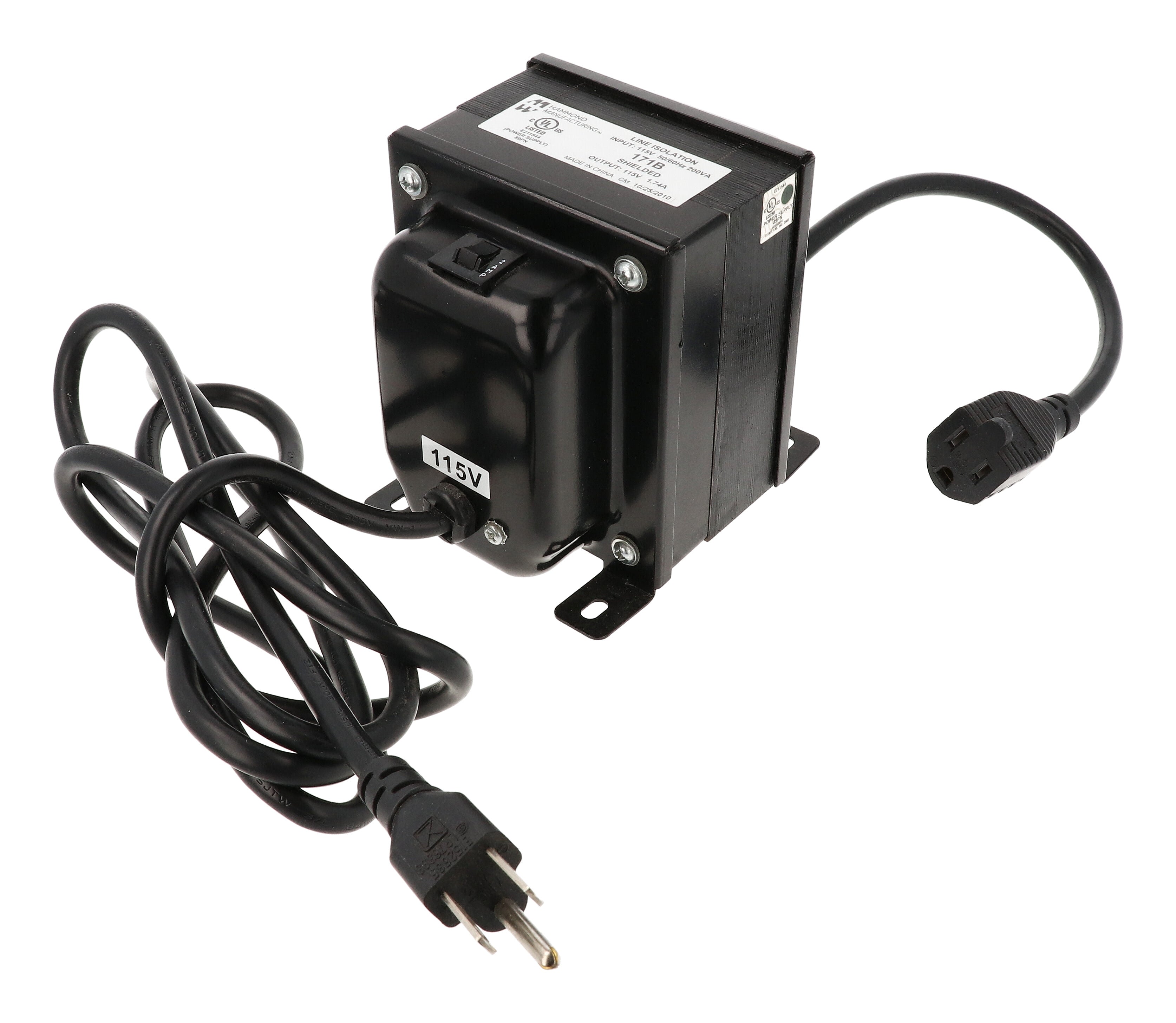

171B Hammond Isolation Transformer, 200 VA
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 171B is listed by Hammond as isolation transformer, plug-in, 115VAC, 50/60 Hz to 115VAC, 200VA, 171 Series, from the Isolation (115VAC to 115VAC) (171 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
171B specifications
| Catalog number | 171B |
| Manufacturer | Hammond Manufacturing |
| Series | Isolation (115VAC to 115VAC) (171 Series) |
| Hammond description | Isolation transformer, plug-in, 115VAC, 50/60 Hz to 115VAC, 200VA, 171 Series |
| Hammond short description | PLUG IN ISOLATION 200VA |
| Shipping weight | 8 lb (3.63 kg) |
| UL File # | E211544 |
| Power Rating (VA) | 200 |
| Leakage Current | 47.52 µA |
| Full Load Efficiency | 0.93 |
| Full Load Total Harmonic Distortion | 0.00195 |
| Surge/Noise Suppression | -37.15 dB |
| Capacitance Between Windings @ 1KHz | 15 pF |
| Circuit Breaker (Amps) | 2 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 171B. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 171B · Hammond 171 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
