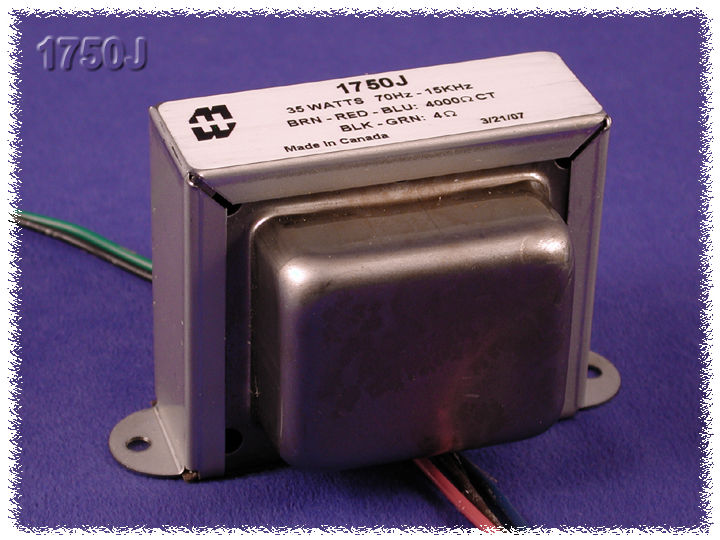

The Hammond Manufacturing 1750J is listed by Hammond as output transformer, guitar amp, 4,000 C.T. ohm pri., 4 ohm sec., 40W, from the Tube Guitar Amplifier, Output Transformers (1750 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1750J specifications
| Catalog number | 1750J |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Output Transformers (1750 Series) |
| Hammond description | Output transformer, guitar amp, 4,000 C.T. ohm pri., 4 ohm sec., 40W |
| Hammond short description | OUTPUT 35W PRO REVERB SEC=4OHM |
| Shipping weight | 4 lb (1.81 kg) |
| Primary Impedance (Ohms) | 4,000 C.T. |
| Secondary Impedance (Ohms) | 4 |
| Amplifier Type | Push-Pull |
| Watts | 40 |
| Winding Type | Bobbin |
| Original Amp Mfr | Fender |
| Amp Model Name(s) (Ref. Only) | Bandmaster* |
| Similar to OEM Part Number (Ref. Only) | 125A6A, 022848, 125A7A |
| OEM Chassis Number (Ref. Only) | Blonde, 6G7-A, Blackface, AA763, AB763, Silverface, AC568, AD1269, Blackface Reverb,Reverb, Reverb AA763, Silverface Reverb, Reverb AA1069, Reverb AA270 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1750J. Confirm against the current Hammond drawing before you design it in.
