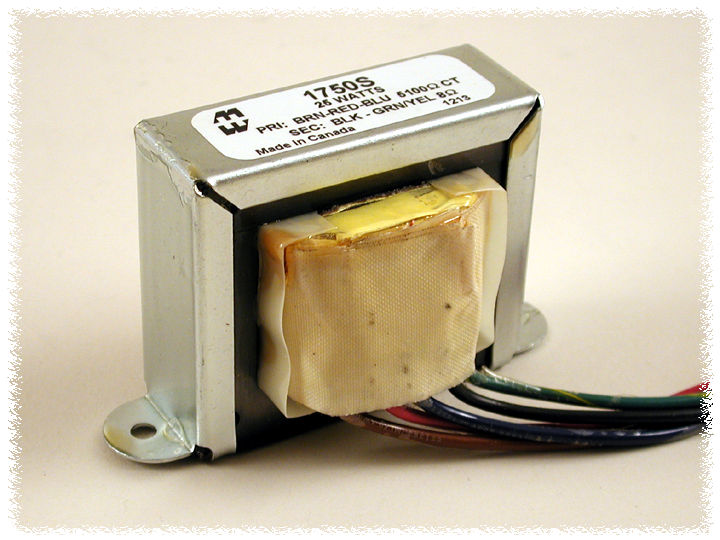

The Hammond Manufacturing 1750S is listed by Hammond as output transformer, guitar amp, 5,100 C.T. ohm pri., 8 ohm sec., 25W, from the Tube Guitar Amplifier, Output Transformers (1750 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
1750S specifications
| Catalog number | 1750S |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Output Transformers (1750 Series) |
| Hammond description | Output transformer, guitar amp, 5,100 C.T. ohm pri., 8 ohm sec., 25W |
| Hammond short description | TRAYNOR TX OUTPUT GUITAR |
| Shipping weight | 7 lb (3.18 kg) |
| Primary Impedance (Ohms) | 5,100 C.T. |
| Secondary Impedance (Ohms) | 8 |
| Amplifier Type | Push-Pull |
| Watts | 25 |
| Winding Type | Paper |
| Original Amp Mfr | Yorkville / Traynor |
| Amp Model Name(s) (Ref. Only) | Base Mate YBA-2B |
| Similar to OEM Part Number (Ref. Only) | A1339 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 1750S. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 1750S · Hammond 1750 series specification sheet (PDF).
