194A Hammond Choke Designed for Fender Guitar Amp
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850

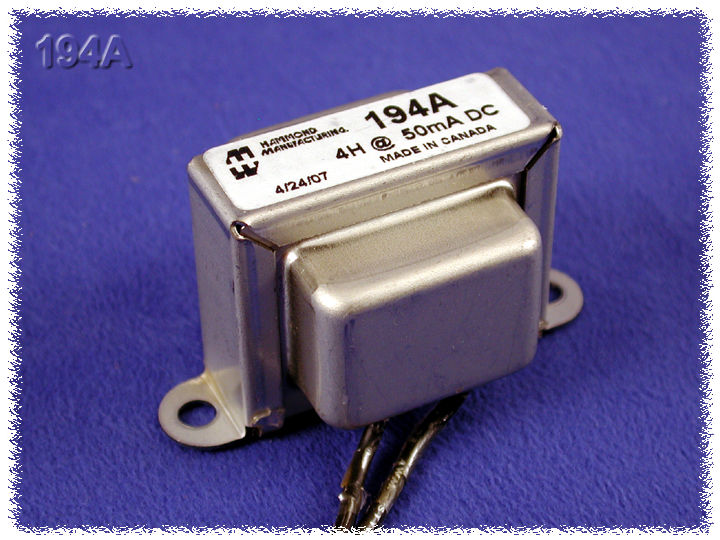

The Hammond Manufacturing 194A is listed by Hammond as choke designed for Fender guitar amp, inductance 4 H @ 50 ma., 194 Series, from the Tube Guitar Amplifier, Chokes (194 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
194A specifications
| Catalog number | 194A |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Chokes (194 Series) |
| Hammond description | Choke designed for Fender guitar amp, inductance 4 H @ 50 ma., 194 Series |
| Hammond short description | CHOKE 50MA, 1500 OHMS |
| Shipping weight | 0.1 lb (0.05 kg) |
| Inductance +/-15% | 4 H |
| D.C. Current (mA) | 50 ma. |
| Original Amp Mfr. | Fender |
| Amplifier Model Name (Ref. Only) | Deluxe, Deluxe Reverb, Vibrolux, Vibrolux Reverb 1964 Blackface 6G15 Reverb |
| Similar to Mfr Part Number (Ref. Only) | 125C3A & 022707 |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 194A. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 194A · Hammond 194 series specification sheet (PDF).
