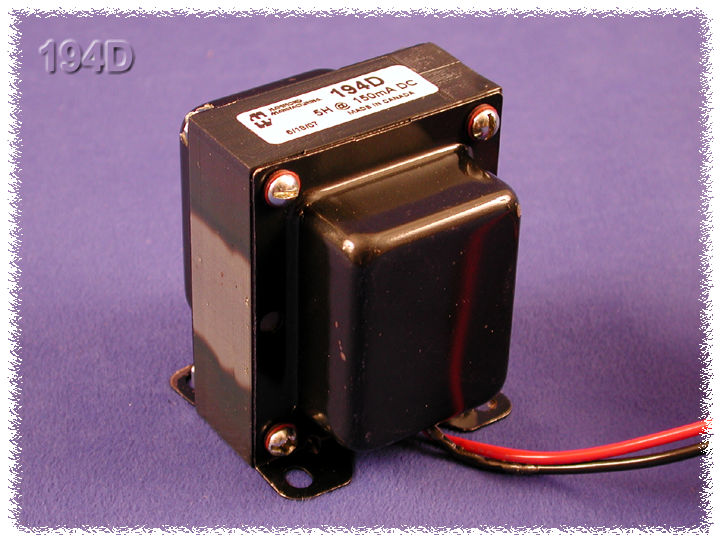

194D Hammond Choke Designed for VOX Guitar Amp
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 194D is listed by Hammond as choke designed for VOX guitar amp, inductance 5 H @ 150 ma., 194 Series, from the Tube Guitar Amplifier, Chokes (194 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
194D specifications
| Catalog number | 194D |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Chokes (194 Series) |
| Hammond description | Choke designed for VOX guitar amp, inductance 5 H @ 150 ma., 194 Series |
| Hammond short description | CHOKE FOR AC30 RE-ISSUE, VOX |
| Shipping weight | 0.1 lb (0.05 kg) |
| Inductance +/-15% | 5 H |
| D.C. Current (mA) | 150 ma. |
| Original Amp Mfr. | VOX |
| Amplifier Model Name (Ref. Only) | AC30 reissue |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 194D. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 194D · Hammond 194 series specification sheet (PDF).
More Hammond products at Hammond Manufacturing. Have a competitor part number? Send it and we cross it to Hammond. See the cross reference hub.
