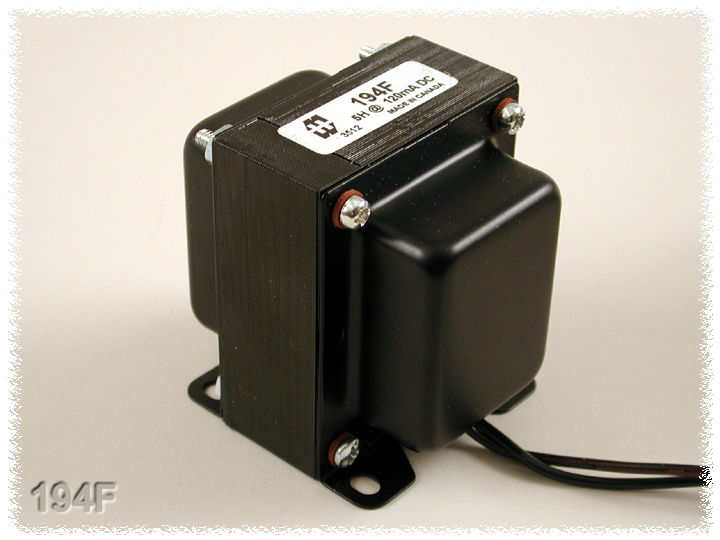

194F Hammond Choke Designed for Marshall Guitar Amp
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 194F is listed by Hammond as choke designed for Marshall guitar amp, inductance 5 H @ 120 ma., 194 Series, from the Tube Guitar Amplifier, Chokes (194 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
194F specifications
| Catalog number | 194F |
| Manufacturer | Hammond Manufacturing |
| Series | Tube Guitar Amplifier, Chokes (194 Series) |
| Hammond description | Choke designed for Marshall guitar amp, inductance 5 H @ 120 ma., 194 Series |
| Hammond short description | CHOKE FOR MARSHALL JCM800 |
| Shipping weight | 1.6 lb (0.73 kg) |
| Inductance +/-15% | 5 H |
| D.C. Current (mA) | 120 ma. |
| Original Amp Mfr. | Marshall |
| Amplifier Model Name (Ref. Only) | Later Mark II and 800 (50 & 100 Watt) not Plexis |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 194F. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 194F · Hammond 194 series specification sheet (PDF).
