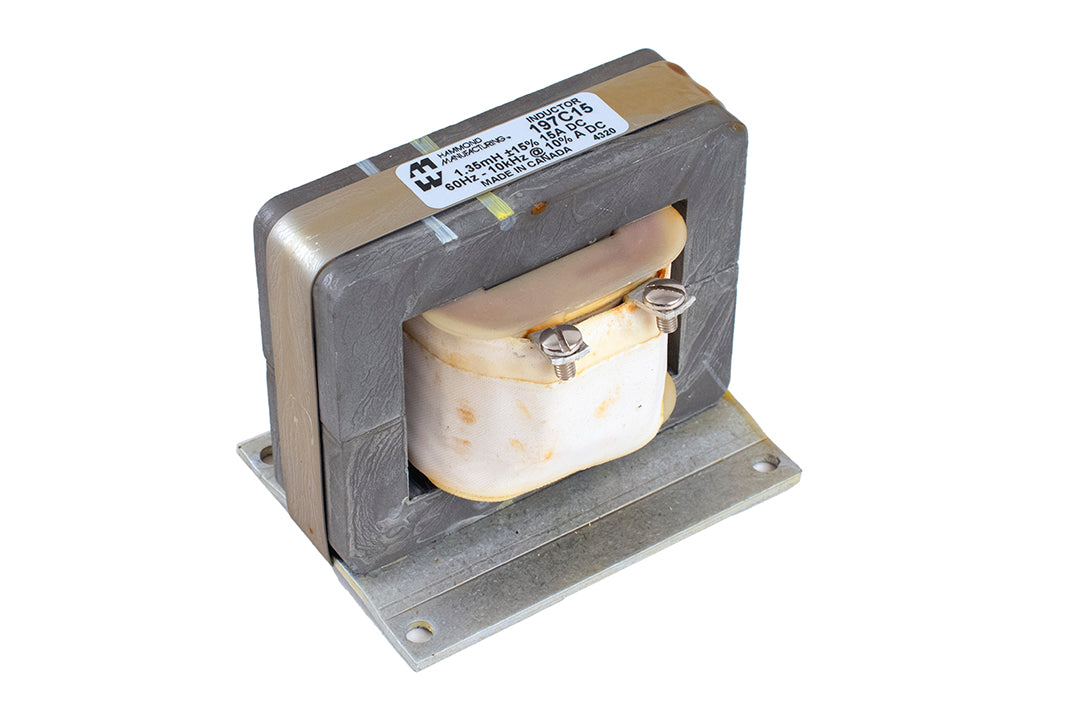

197C15 Hammond High Frequency Reactor, 3.86 x 4.5 x 3.37 in
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 197C15 is listed by Hammond as high Frequency Reactor, 1.35 mH, 15A, Screw Terminals, 197 Series, from the High Frequency Reactors (197 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
197C15 specifications
| Catalog number | 197C15 |
| Manufacturer | Hammond Manufacturing |
| Series | High Frequency Reactors (197 Series) |
| Hammond description | High Frequency Reactor, 1.35 mH, 15A, Screw Terminals, 197 Series |
| Hammond short description | CHOKE |
| Size A x B x C | 3.86 x 4.5 x 3.37 in (98 x 114 x 86 mm) |
| Shipping weight | 6 lb (2.72 kg) |
| Inductance | 1.35 |
| Current (A) | 15 |
| Self-Resonant Frequency (kHz) | 289.05 |
| DCR (mOhm) | 29 |
| Connection | Screw Terminals |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 197C15. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 197C15 · Hammond 197 series specification sheet (PDF).
