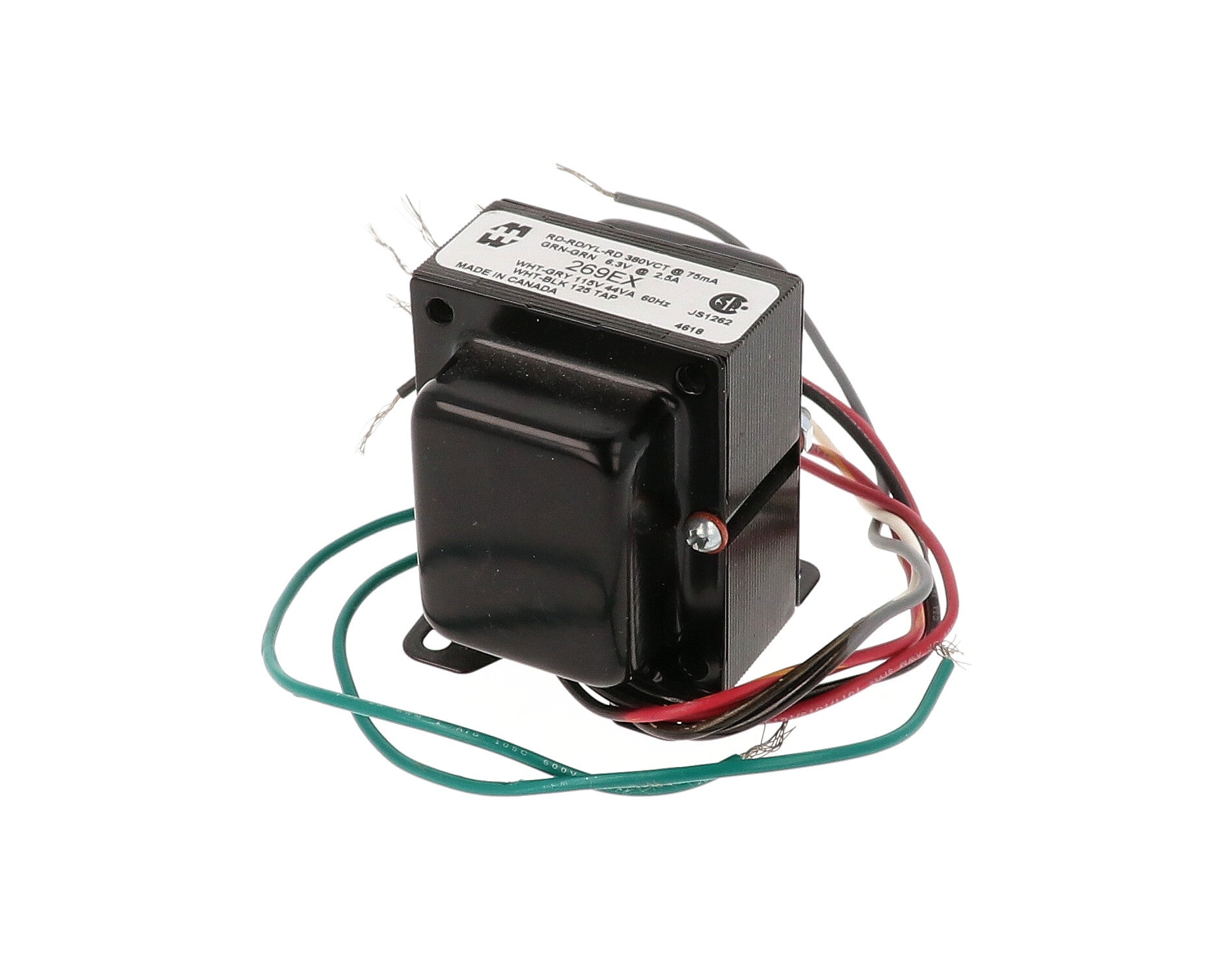

269EX Hammond Transformer, 43 VA
Priced within one business day. Factory-direct pricing from an authorized rep. Replacing a competitor part? Send the number and we cross it.
Questions or Require Additional Information?
Call us Today at +1-248-830-4850
The Hammond Manufacturing 269EX is listed by Hammond as transformer, high voltage, 43VA, primary 115VAC, HV secondary 380V C.T. @ 71ma., from the High Voltage (Plate) & Filament, 32 VA to 454 VA (200 Series). Applied Control is the Hammond manufacturers representative. Send the catalog number with the quantity, and the quote comes back the same business day.
Request a QuoteBook 15 Minutes
269EX specifications
| Catalog number | 269EX |
| Manufacturer | Hammond Manufacturing |
| Series | High Voltage (Plate) & Filament, 32 VA to 454 VA (200 Series) |
| Hammond description | Transformer, high voltage, 43VA, primary 115VAC, HV secondary 380V C.T. @ 71ma. |
| Hammond short description | POWER TX |
| Shipping weight | 1.8 lb (0.82 kg) |
| Power Rating (VA) | 43 |
| Primary VAC | 115 |
| Primary Frequency | 60 |
| A.C. High Voltage Secondary RMS | 380V C.T. @ 71ma. |
| Filament # 1 VAC | 6.3V @ 2.5A |
| Mounting Type | Vertical ("X") |
| Compliance | REACH and RoHS |
Specifications from the Hammond Manufacturing product page for 269EX. Confirm against the current Hammond drawing before you design it in.
Hammond product page for 269EX · Hammond 200 series specification sheet (PDF).
